The Barrowch Chameleon Fish 480 Radiator in Classic Black is the ultimate modular radiator that is sure to work with any PC color scheme as well as offer great cooling performance. True to its name, this radiator can blend into any PC color scheme. The radiator sides feature interchangeable colored anodized aluminum pieces as well as an end tank available in black POM or clear acrylic to show off your coolant! This radiator is 30mm thick and has a low fin density which is great for low speed fans. Model: FBCFR-480Y

▣Description:

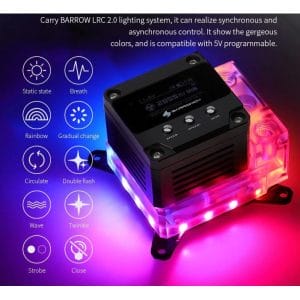

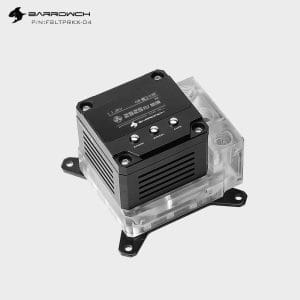

The Barrowch FBLTPRK-04 CPU water block integrated pump and reservoir is a product of performance, space and art! It can always bring the performance of CPU to the extreme! Due to the integration of pump and reservoir, the matching of cooling system becomes easier. Barrowch uses an independent imported PMMA material for it, while the heat dissipation microchannel uses a 58mm * 58mm high-purity nickel plating copper substrate, 4 + 2 asymmetric(0.4mm slot width+0.2mm interval)channel, to dissipate as much heat as possible for the CPU.

▣Product information(Water block):
▢Brand:Barrowch
▢Model:FBLTPRK-04 / FBLTPRKA-04 / FBLTPRKX-04
▢Material:Nickel plated copper base plate, purity acrylic, aluminum alloy(not with contact in coolant)
▢Lighting:LRC2.0(5v 3pin ARGB), BARROW lighting plug(Should be used with BARROW ZBDZJX-5 adapter cable etc.)
▢Color:Black/Silver
▢Thread:G1/4″
▢Dimension:Please refer to the dimension drawing.

▣Product information(Pump):
▢Brand:Barrowch
▢Rated voltage:DC 12V
▢Rated current:1.4A
▢Rated power rating:17W
▢Maximum head pressure:5~6M
▢Maximum flow rate:960L/H
▢Pump interface thread:G1/4″
▢Temperature range:<60°C
▢Operating noise:<40dba
▢Rotational speed:4000rpm
▢Service life:>50000h

▣Parts included:
▢1x FBLTPRK-04 CPU integrated water block
▢1x Thermally conductive silicone grease(May be removed due to transport regulations.)
▢Mounting hardware

▣CPU model compatibility:
▢INTEL:LGA 1366/1156/1155/1151/1150
▢AMD:Ryzen3/5/7, Ryzen ThreadRipper, AM4/3+/3/2+/2, FM2+/2/1
▢X99/X299:LGA 2011/2066

▣Pay attention:
▢Reading the pictures carefully can bring you more product details.
▢The filter device is suggested to add in the front of block to prevent jaming.
▢The inlet and outlet should be distinguished before installation.
▢After installation, the system must be filled with water, otherwise the pump cannot drive the circulation of air.
▢The lighting effect is displayed as the Acrylic version, and the POM version does not include lighting.
▢If the appearance or structure of the product is upgraded without prior notice, please refer to the actual product.
▢You can contact us at any time for more details of the product on Barrow’s official website.

Original imported high transparency acrylic board

High temperature resistant and high transparency imported acrylic  raw materials have higher have

Higher transparency, longer life, no color change, no cracking, and emitting full of internal brilliant lighting effects.

High density jet microchannel

58MM*58MM High purity copper nickel plating base plate , up to 49 micro channels , each channel is clear bottom grooving 4+2 asymmetric (0.4mm slot width  + 0.2mm interval ) channel.The contact area between the cooling liquid and base plate is increased , and the heat dissipation effieciency of water block is enhanced.

EK-CryoFuel Amber Orange (Concentrate 100mL)

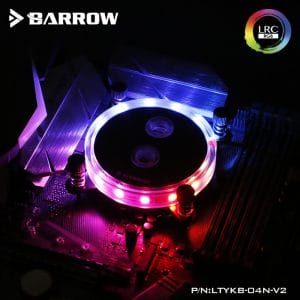

model：LTYKB-04N-V2

Belong to category：Barrow CPU Water Block

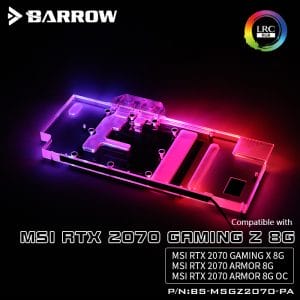

model：BS-MSGZ2070-PA

Belong to category：MSI

model：BSDQT-PA

Belong to category：OTHERS

5-98 V2 length: 98MM
YPH65-135 V2 length: 135MM
YPH65-220 V2 length: 220MM

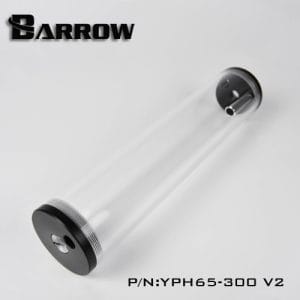

YPH65-300 V2 length: 300MM
Diameter: 65MM

New Barrow YK series tanks, the appearance of the product upgrades, more prominent in the overall design curve aesthetics.
With the structure of the original foam instead of spoiler enhanced, row foaming performance, and has the function of filtering.
V2 OBS-YK130-50 length 130MM

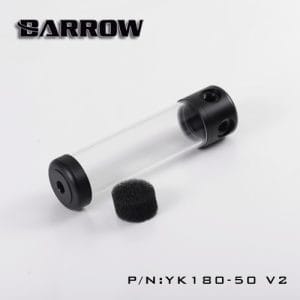

V2 OBS-YK180-50 length 180MM

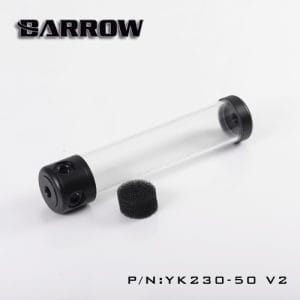

V2 OBS-YK230-50 length 230MM

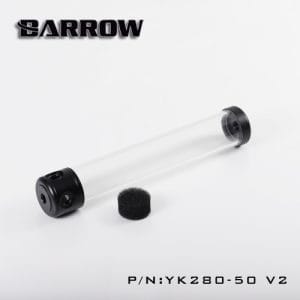

V2 OBS-YK280-50 length 280MM

The use of internal label for P3 brushless permanent magnet motor components provide internal drive for the cooling system tailored to the overall circular structure, small volume, strong performance, collocation BARROW cold row fixation can be simple to install to the system to provide adequate power, and maintain a long-term and stable working state

model：SPB17 PLUS

Belong to category：Pump

model：FBQTS

Belong to category：Digital display fitting

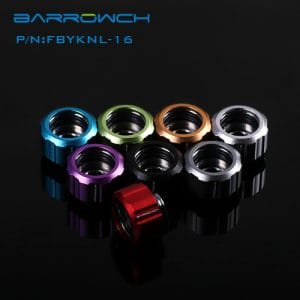

model：FBYKNL-16

Belong to category：Hard-tube Fitting

Colors available in United Arab Emirates : Green, Blue and Bronze

The LRC 2.0 lighting system presents dazzling surround
RGB light effects that can be controlled independently
or compatible with some motherboard RGB interfaces

model：FBFT02-V3

Belong to category：Digital display fitting

Color: Red ( only available in United Arab Emirates)

Delicate appearance, almost crossing the specular gloss
Texture / price ratio far exceeds the general commercial joint

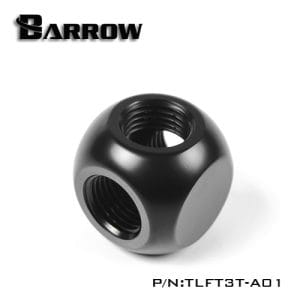

3-way adapter seat
