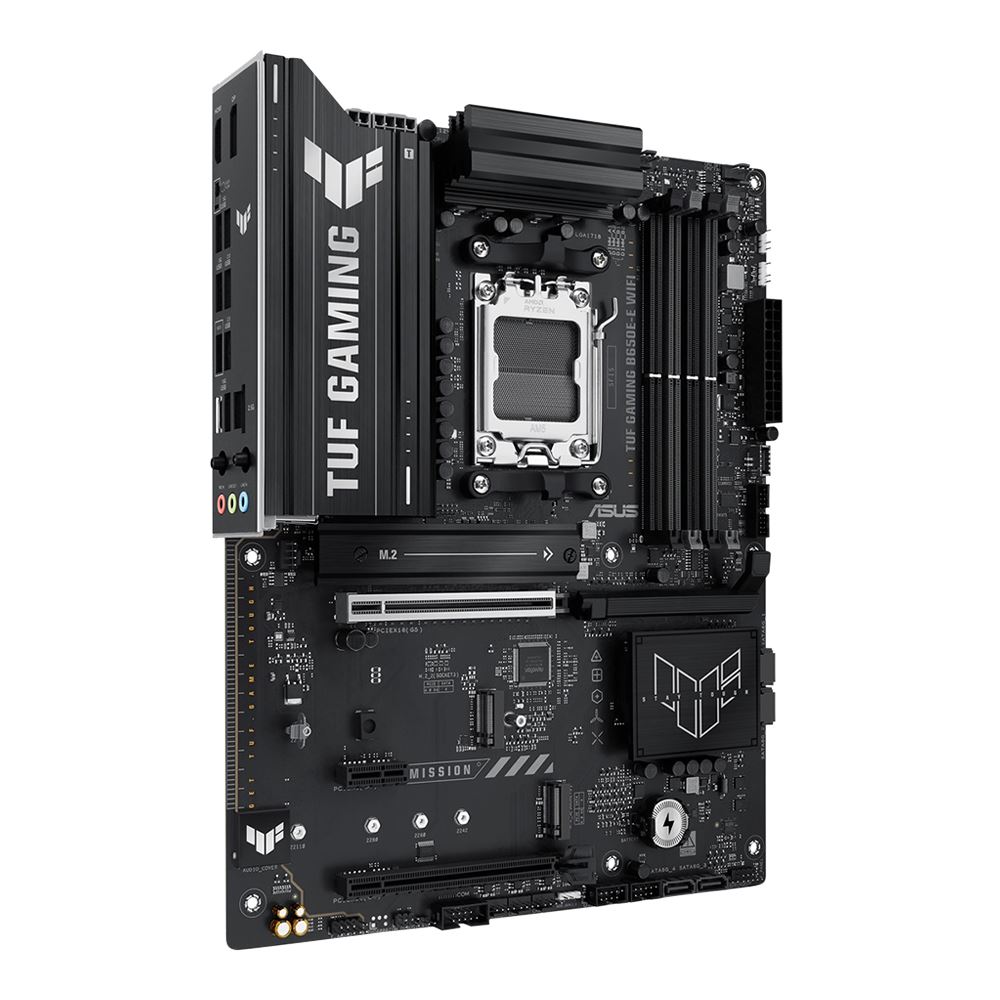

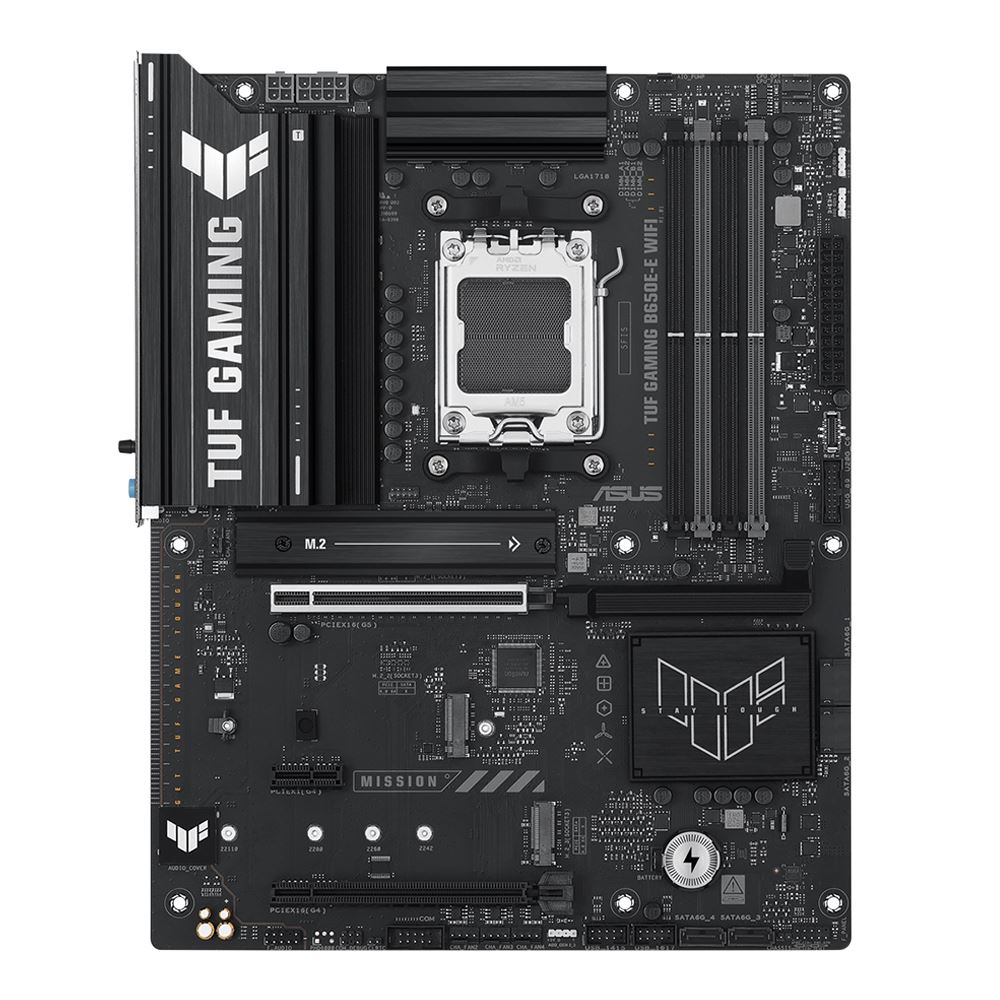

ASUS B650E-E TUF GAMING WIFI Gen 5.0 Motherboard
ASUS B650E-E TUF GAMING WIFI Gen 5.0 Motherboard - Image 2
ASUS B650E-E TUF GAMING WIFI Gen 5.0 Motherboard - Image 3
ASUS B650E-E TUF GAMING WIFI Gen 5.0 Motherboard - Image 4
ASUS B650E-E TUF GAMING WIFI Gen 5.0 Motherboard - Image 5
,

ASUS B650E-E TUF GAMING WIFI Gen 5.0 Motherboard

Availability:

2 in stock

199 JOD 229 JOD

2 in stock

B650E-E TUF GAMING WIFI AMD AM5 ATX Motherboard

ASUS TUF GAMING B650-E WIFI takes all the essential elements of the latest AM5 Socket for AMD Ryzen Desktop Processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.



Product Information

SKU
863944
Mfr Part#
TUFB65E-EWIFI
UPC
197105992498

General Specifications

Packaging
Retail

Chipset

Chipset
AMD B650
BIOS
256 Mb Flash ROM, UEFI AMI BIOS

CPU Support

AMD CPU Support
Ryzen
Socket Type
AM5

Memory Specifications

ECC
Non-ECC; Non-Registered
ECC; Non-Registered
Memory Type
DDR5-4800
DDR5-5200
DDR5-5000
Memory Speeds Supported
8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 MHz
Memory Slots
4 x 288pin DIMM
Memory Channel Support
Dual Channel
Max Memory Supported
192GB
Maximum Memory Supported Per Slot
48GB

Video Specifications

Onboard Graphic Chipset
Requires CPU with Integrated Graphics

Storage Specifications

M.2 Port Type
2242
2260
2280
22110
SATA Express
3 x M.2 Socket 3
M Key
SATA 6Gb/s
4
RAID Support
RAID 0
RAID 1
RAID 10

Audio Specifications

Audio Chipset
Realtek
Audio Channels
7.1

Networking

WiFi Support
Onboard WiFi
LAN Chipset
Realtek 2.5Gb Ethernet
LAN Speed
10/100/1000/2500Mbps
Wireless Technology
802.11b
802.11g
802.11a
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
Bluetooth v5.3

Expansion Slots

PCI Express 4.0 x16
1
PCI Express 5.0 x16
1
PCI Express x1
1

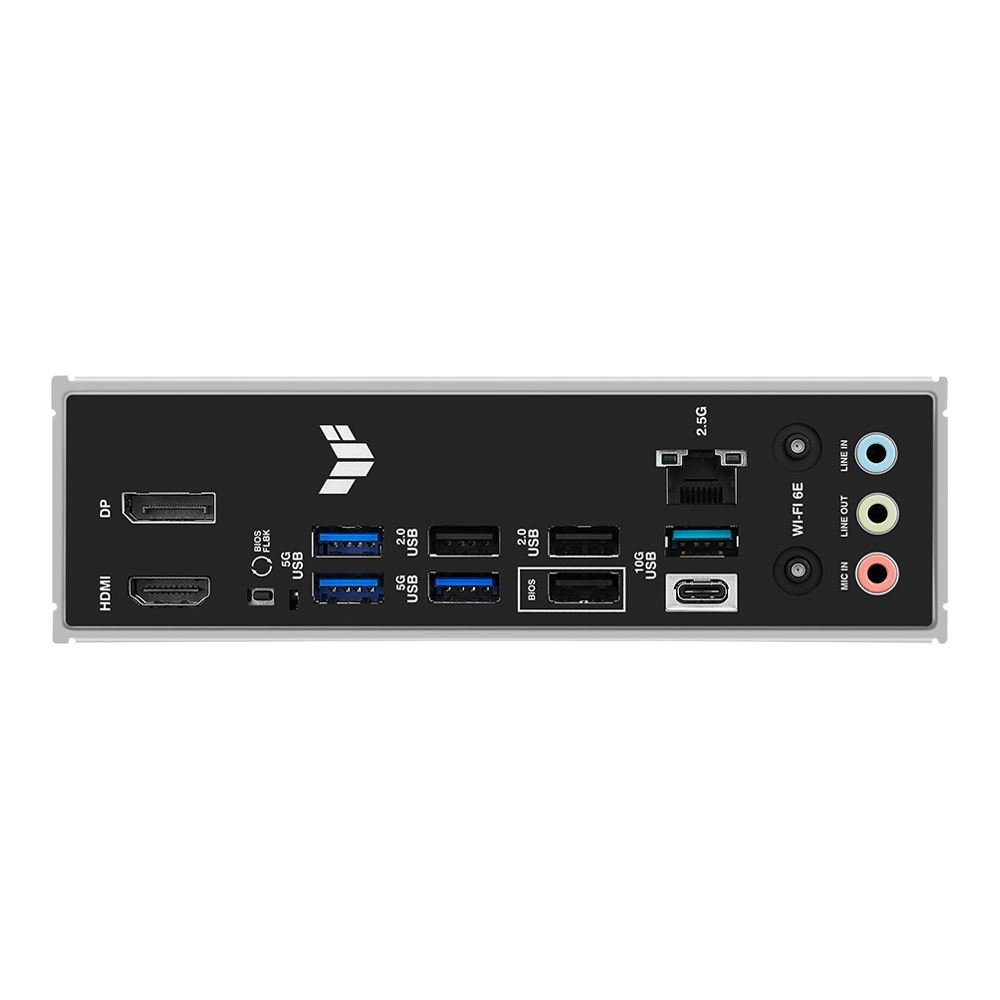

Back Panel Ports

LAN Ports
1 x 10/100/1000/2500 RJ-45 LAN
Audio Ports
1 x 3.5 mm Microphone
1 x 3.5 mm Line-In
1 x 3.5 mm Line-Out
Specialty Ports
2 x WiFi Antenna Ports
USB 2.0
3 x USB 2.0 (Type-A)
USB 3.1
1 x USB 3.2 (Gen 2 Type-C)
1 x USB 3.2 (Gen 2 Type-A)
3 x USB 3.2 (Gen 1 Type-A)
Video Connectors
1 x HDMI 2.1
1 x DisplayPort 1.4

Internal I/O & Connectors

Headers
4 x System Fan Header
1 x Water Pump Header
2 x CPU Fan Header
USB
2 x USB 2.0 Headers (4 Ports)
1 x USB 3.2 Gen 1 Type-A Header (2 Ports)
1 x USB 3.2 Gen 2×2 Type-C Header (1 Port)
Other I/O
3 x Addressable LED Headers

Power

Power Connectors
1 x 24-pin ATX Connector
1 x 8-pin +12 V Connector
1 x 4-pin +12 V Connector
ATX Connector
24-pin ATX Power Connector

Physical Specifications

Depth
12.00 in. (304.80 mm)
Width
9.61 in. (244.00 mm)
Form Factor
ATX

Warranty

Parts
3 Years
Labor
3 Years

Package Contents

What’s in the Box
Motherboard, 2x SATA Cables, Antennas, M.2 Rubber Package, M.2 Screws
