AMD, AMD-DDR5, MotherBoard

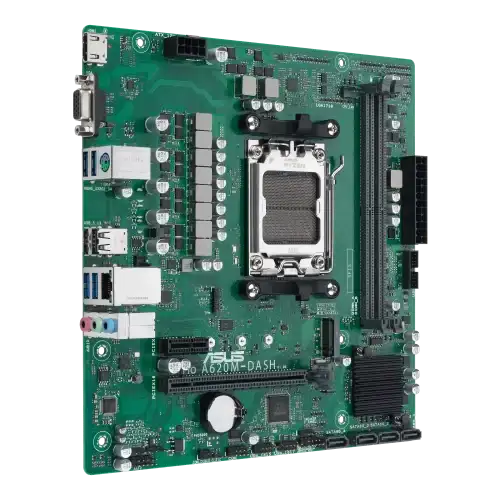

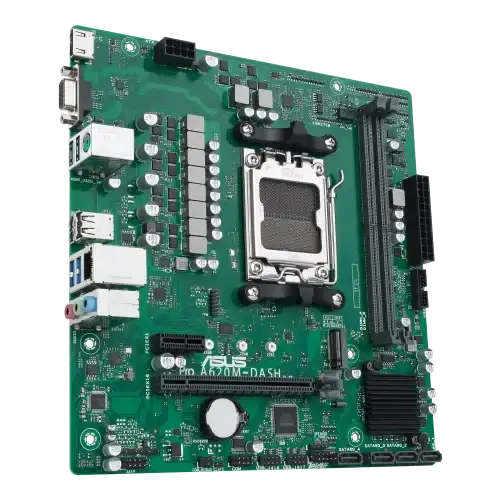

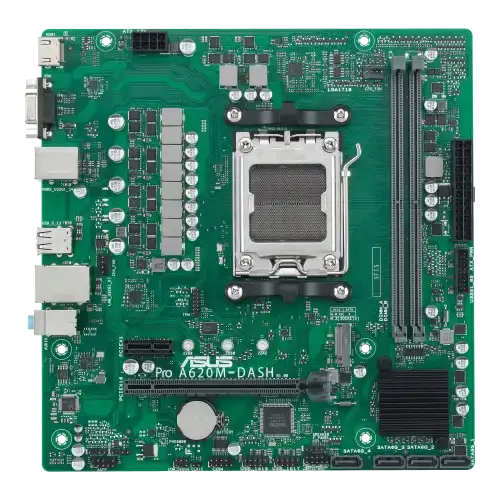

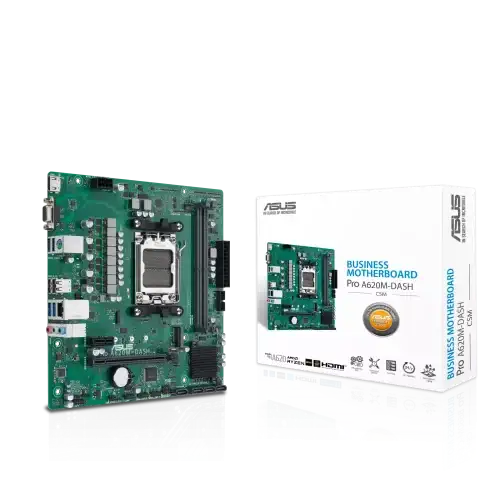

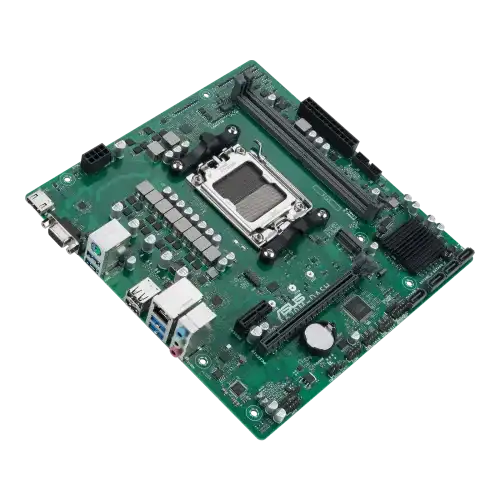

ASUS Pro A620M-DASH-CSM

Name: ASUS Pro A620M-DASH-CSM
SKU: 10575
Availability: OutOfStock

Availability:

Out of stock

84 JOD

Out of stock

Description
Specification
Reviews

Model	Pro A620M-DASH-CSM
CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* Supports up to AMD 120W CPU * Refer to www.asus.com for CPU support list.
Chipset	AMD A620 Chipset
Memory	2 x DIMM slots, Max. 96GB, DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x VGA port 1 x HDMI™ port** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@24Hz as specified in HDMI 1.4.
Expansion Slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors* -1 x PCIe 4.0 x16 slot (support x16 mode) AMD Ryzen™ 8000 Series Desktop Processors* -1 x PCIe 4.0 x16 slot (support x8/x4 mode) AMD A620 Chipset** 1 x PCIe 3.0 x1 slot * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. **Specifications vary by CPU types.
Storage	Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD A620 Chipset 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Ethernet	1 x Realtek 8111EPV Gigabit LAN controller supports DASH ASUS LANGuard *Hardware ready for capable of DASH software.
USB	Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports	4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x VGA port 1 x HDMI™ port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
Special Features	ASUS Q-Design – Q-DIMM – Q-LED Core – Q-Slot ASUS Thermal Solution – Aluminum heatsink design Bespoke Motherboard Design & Business Focused Features – ASUS Self Recovering BIOS – ASUS Event Log – ASUS Commercial BIOS kit* – Anti-Moisture Coating – 24/7 Reliability – Overcurrent Protection * Please contact local FAE for commercial BIOS kit.
Software Features	ASUS Exclusive Software IT Management software supported – ASUS Control Center Express(ACCE)
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x Screw package for M.2 SSD Documentation 1 x ACC Express Activation Key Card 1 x User guide
Operating System	Windows^® 11, Windows^® 10 64-bit
Form Factor	micro-ATX Form Factor 8.9 inch x 8.7 inch (22.6 cm x 22.1 cm)
