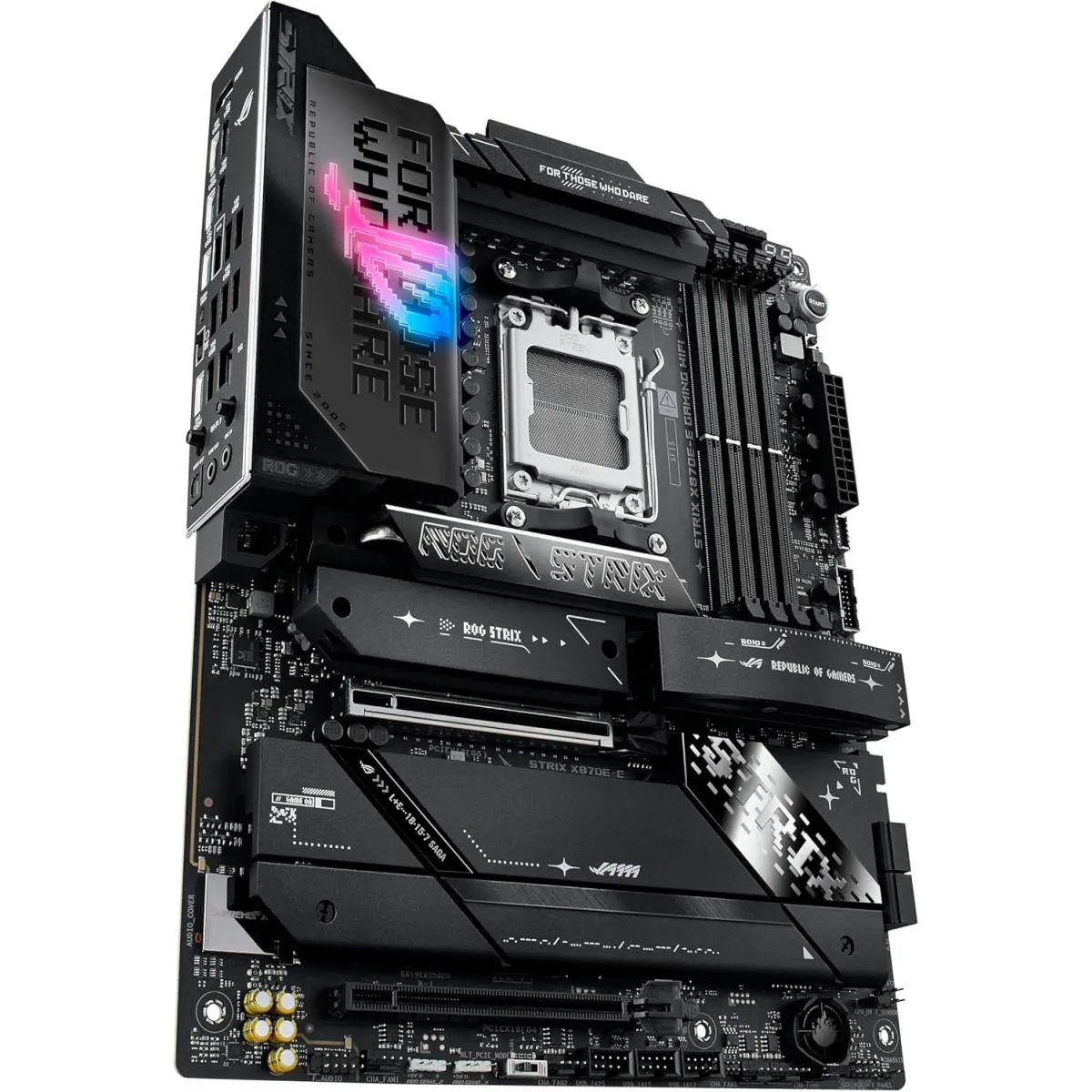

ASUS ROG STRIX X870E-E GAMING WIFI (Wi-Fi 7) AMD RYZEN 7000 8000 9000 Series AM5/DDR5/PCIe 5.0/5xM.2 – ATX Gaming MotherBoard

499 JOD

Description
Specification

Motherboard Specifications
Supported Processors	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset	AMD X870
Socket	AMD AM5
Memory Type	DDR5
Memory Slots	4
Maximum Memory	256GB
Memory Bus Speed	4 x DIMM slots max. 256GB DDR5 Supports up to 8000+MT/s(OC) with Ryzen™ 9000 Series Processors 8400+MT/s(OC) with Ryzen™ 8000 Series Processors 8000+MT/s(OC) with Ryzen™ 7000 Series Processors ECC and Non-ECC Un-buffered DIMM* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™)
Ports	2 x USB4® (40Gbps) ports (2 x USB Type-C®) 1 x USB 20Gbps port (1 x USB Type-C® with up to 30W PD Fast-charge) 10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C®) 1 x HDMI™ port 1 x Wi-Fi Module 1 x Realtek 5Gb Ethernet 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
Form Factor	ATX
M.2 Slots	Yes
Expansion Slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD X870E Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) * Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/). ** Specifications vary by CPU types. – To ensure compatibility of the device installed please refer to https://www.asus.com/support/ for the list of supported peripherals.
