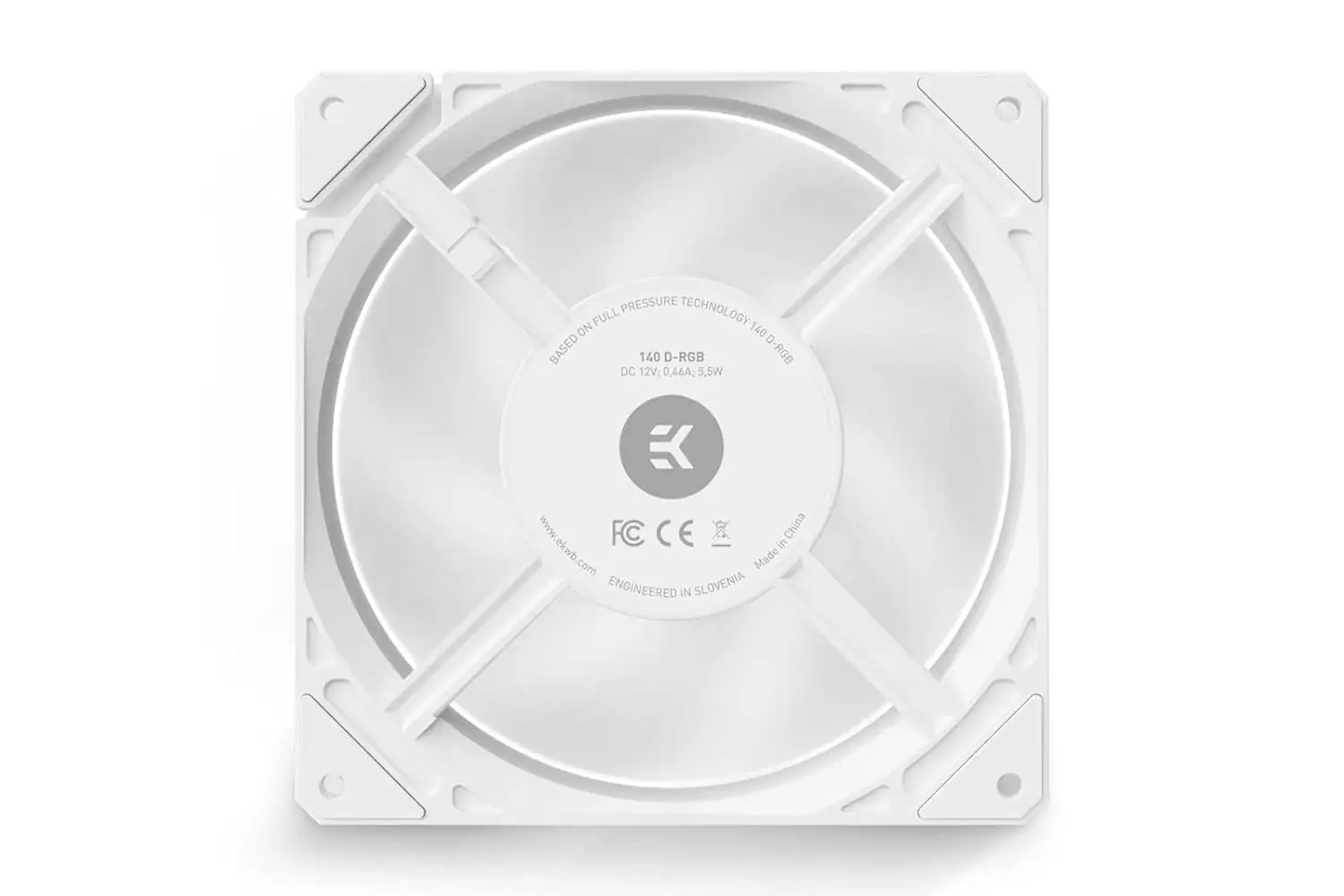

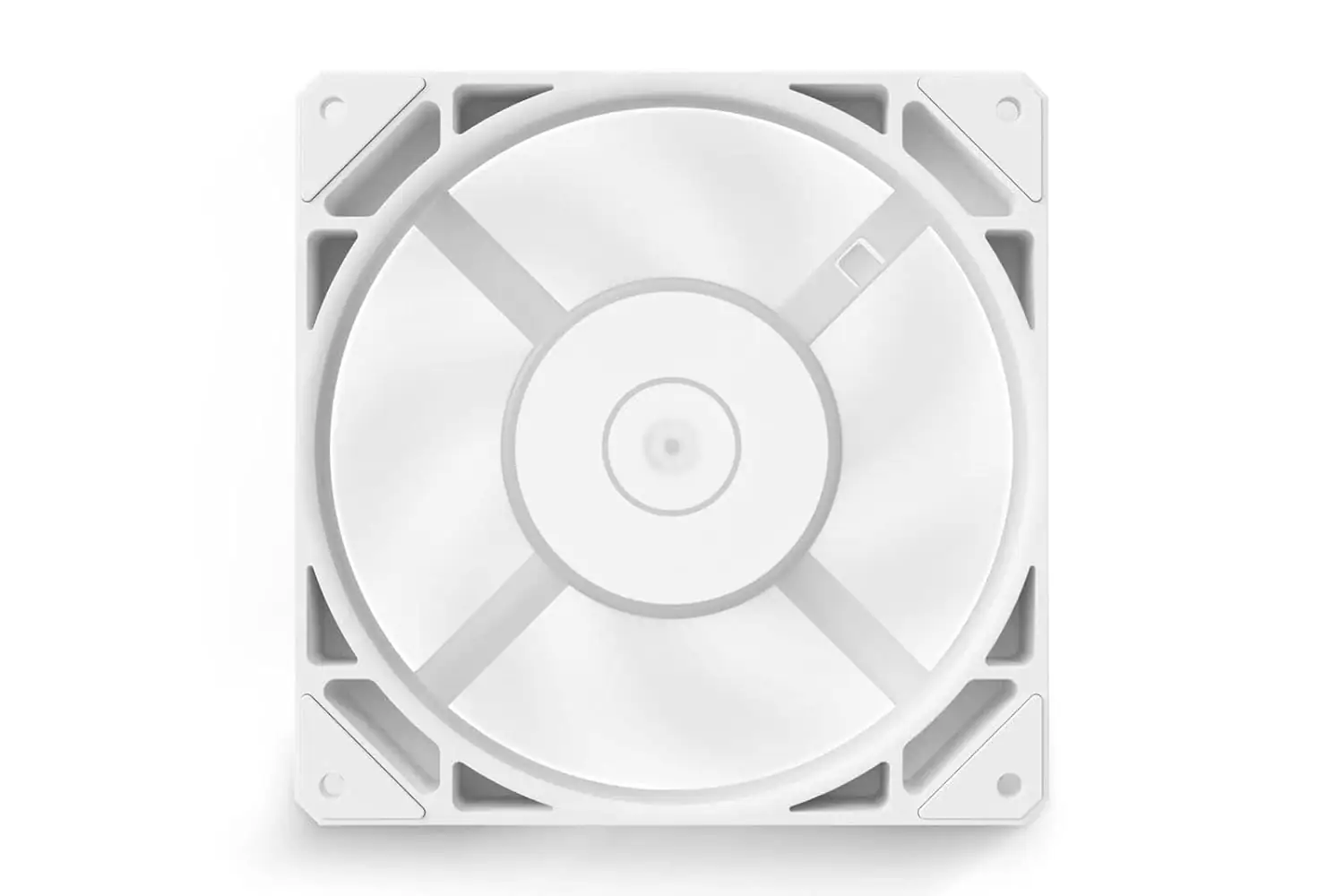

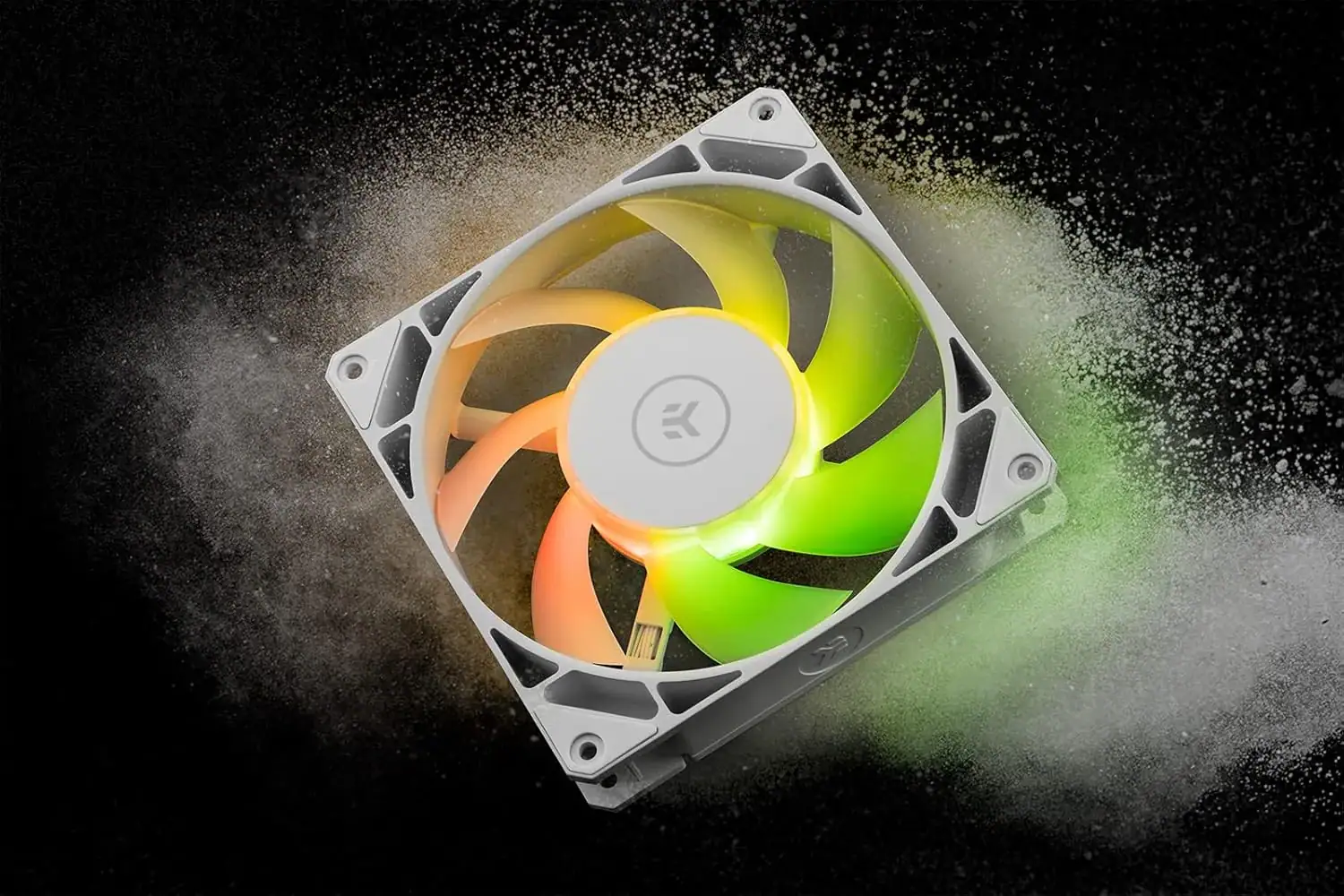

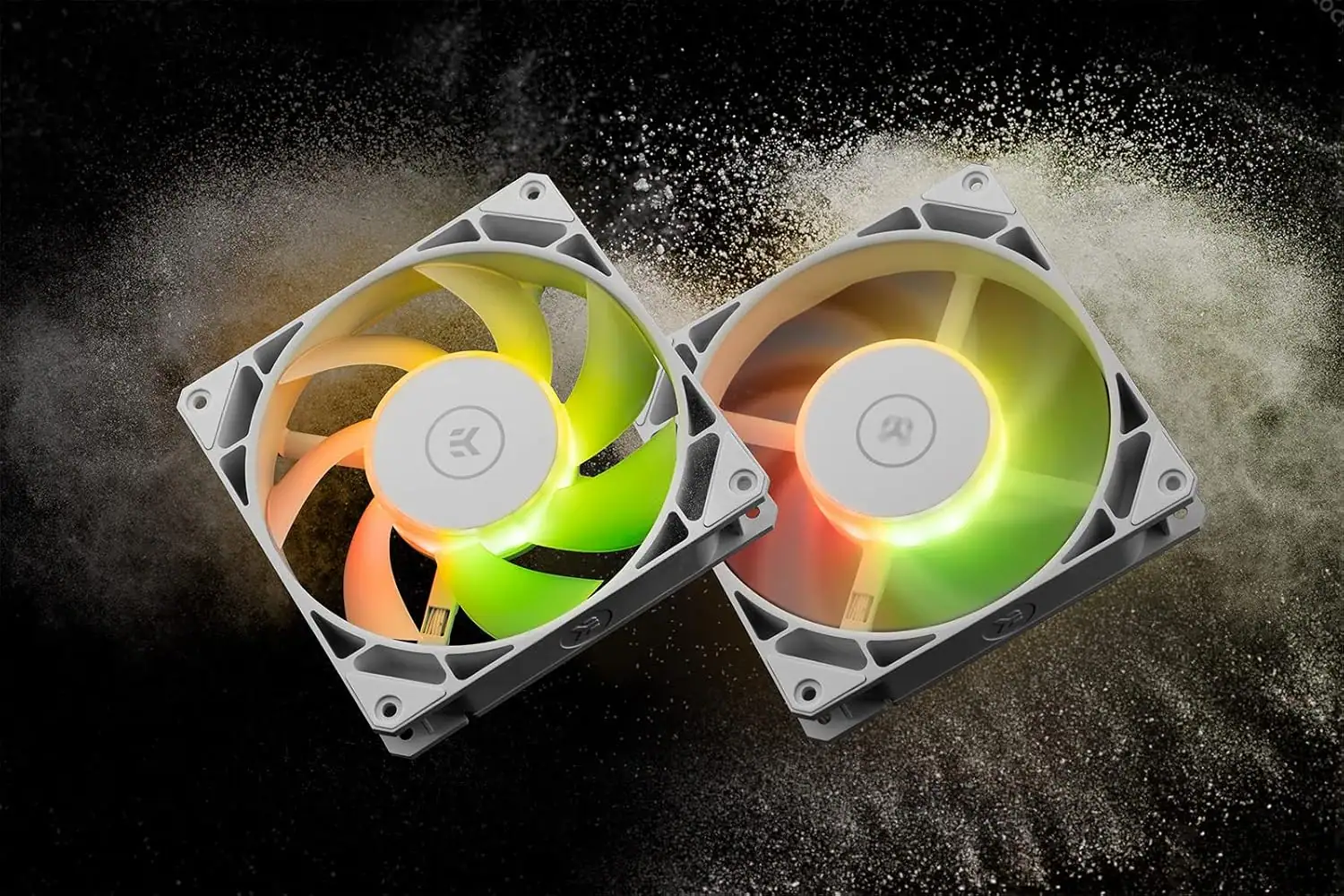

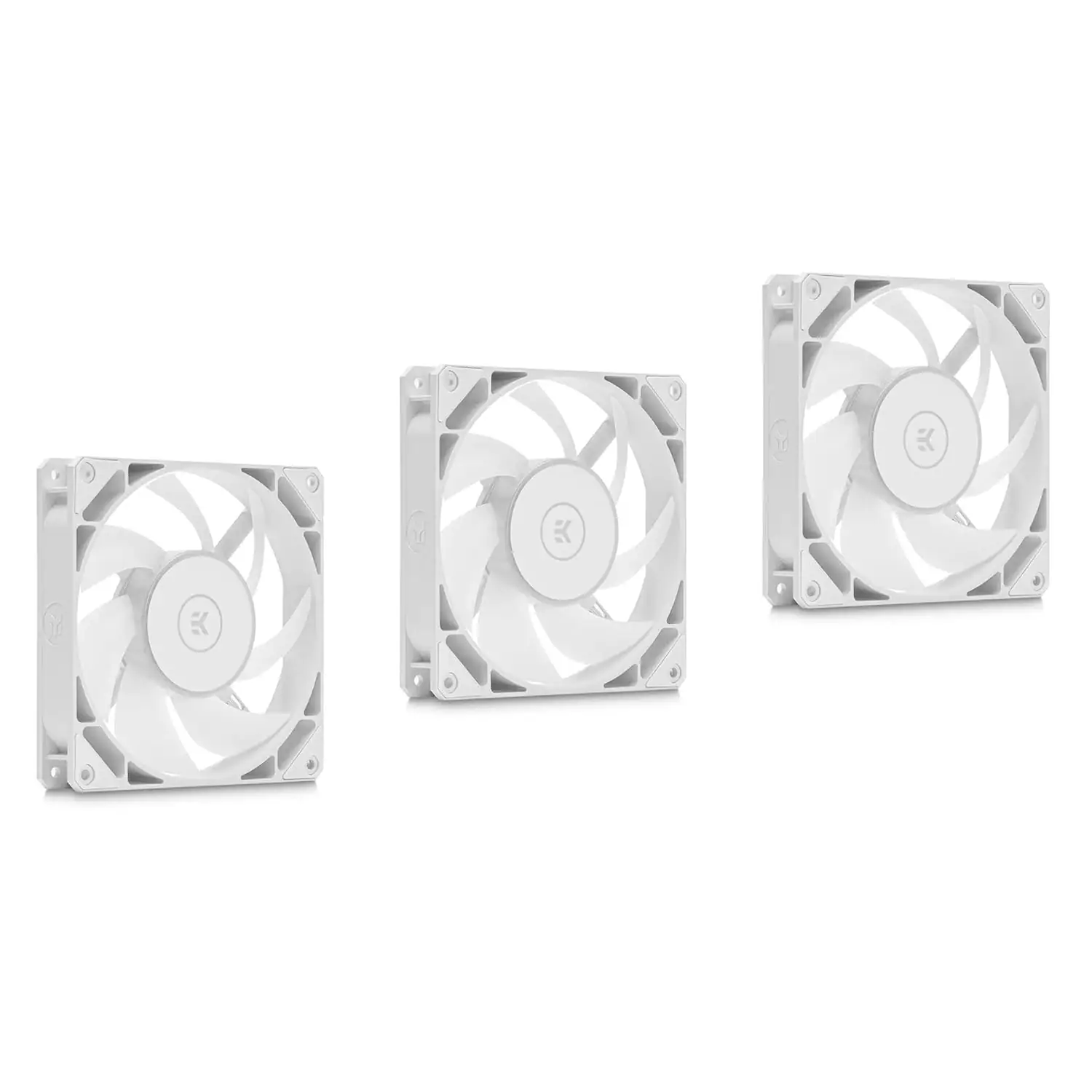

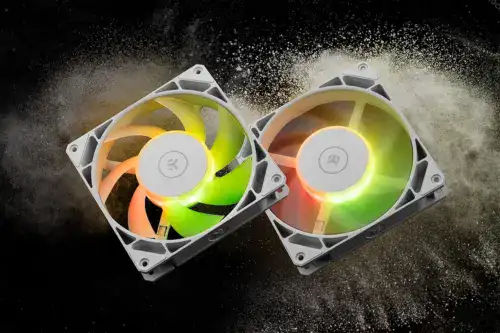

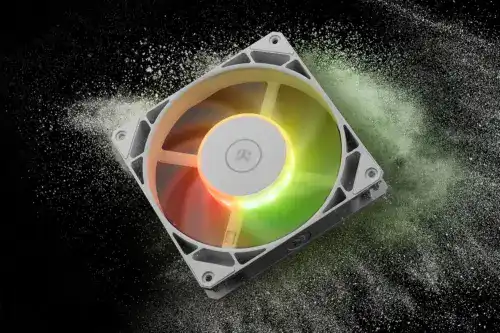

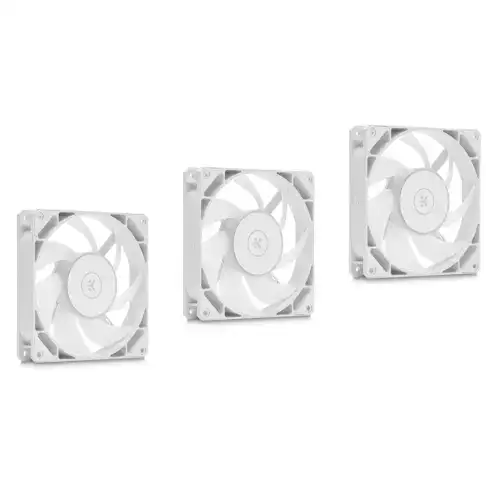

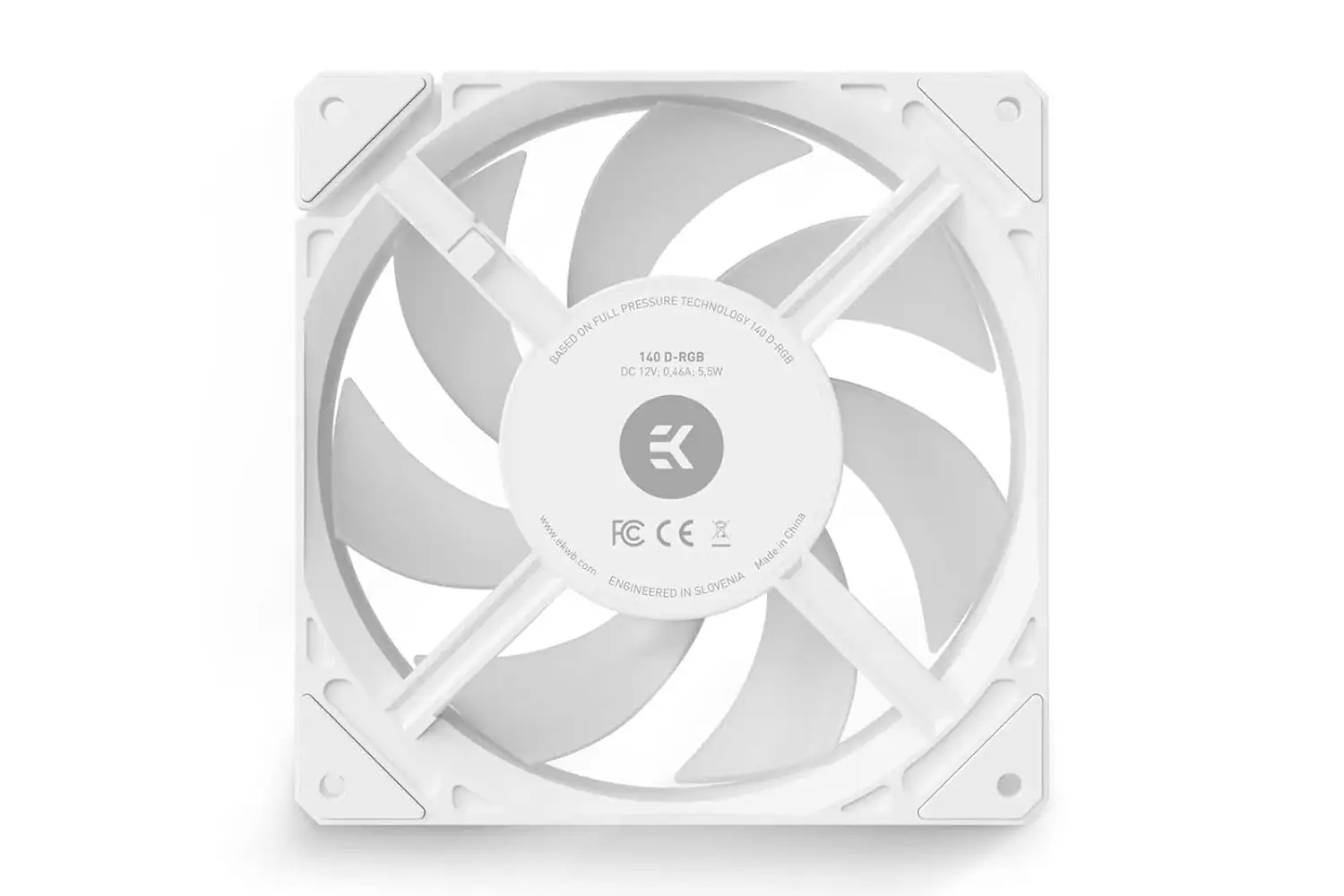

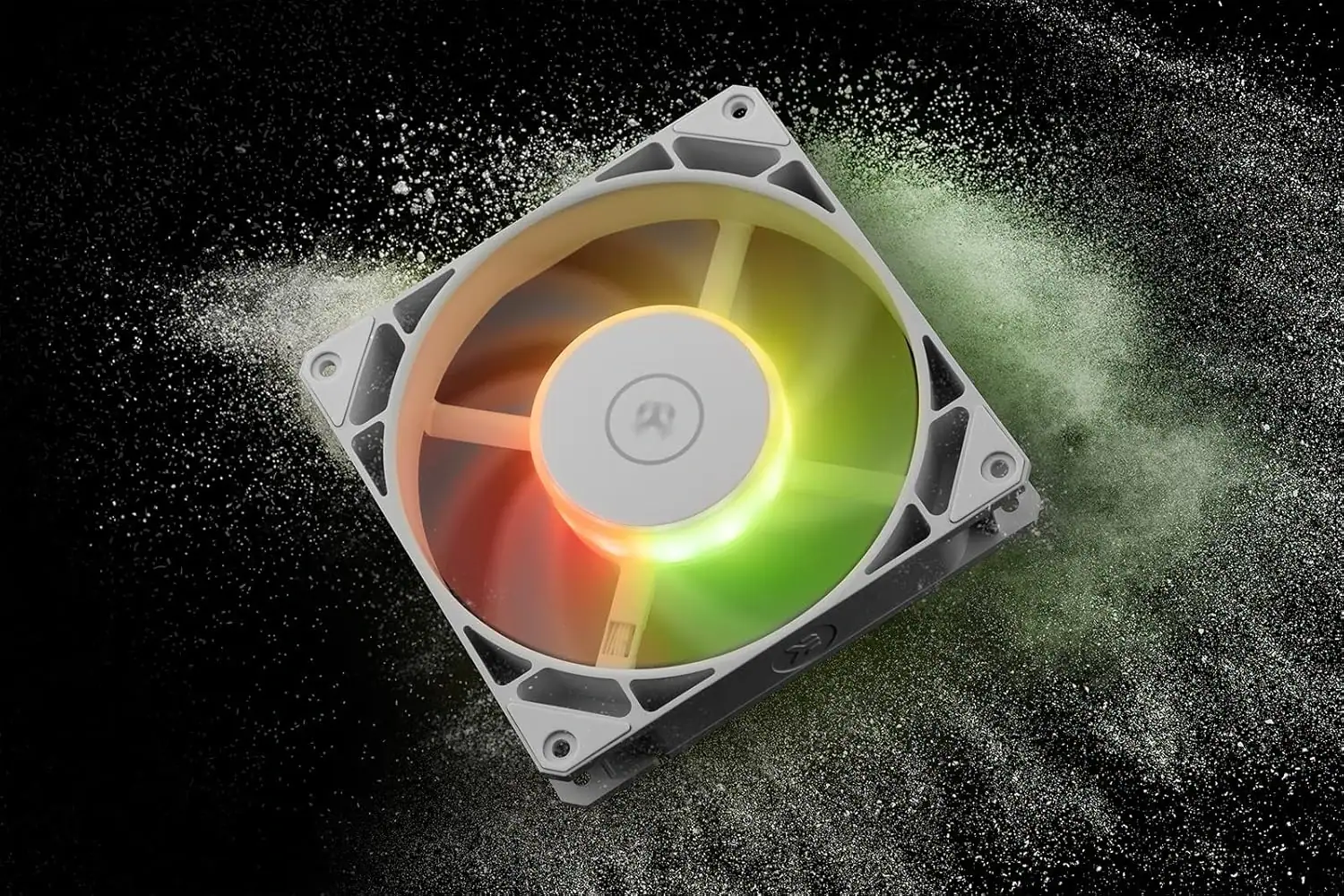

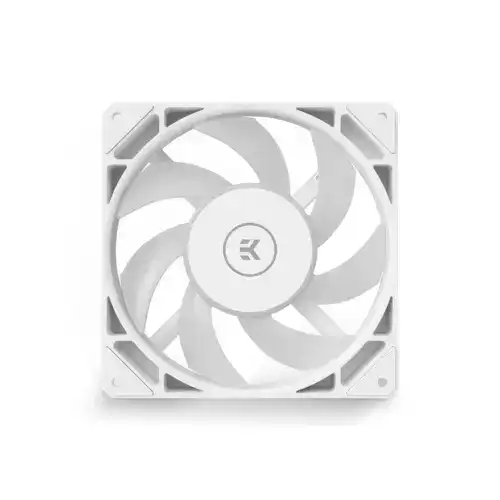

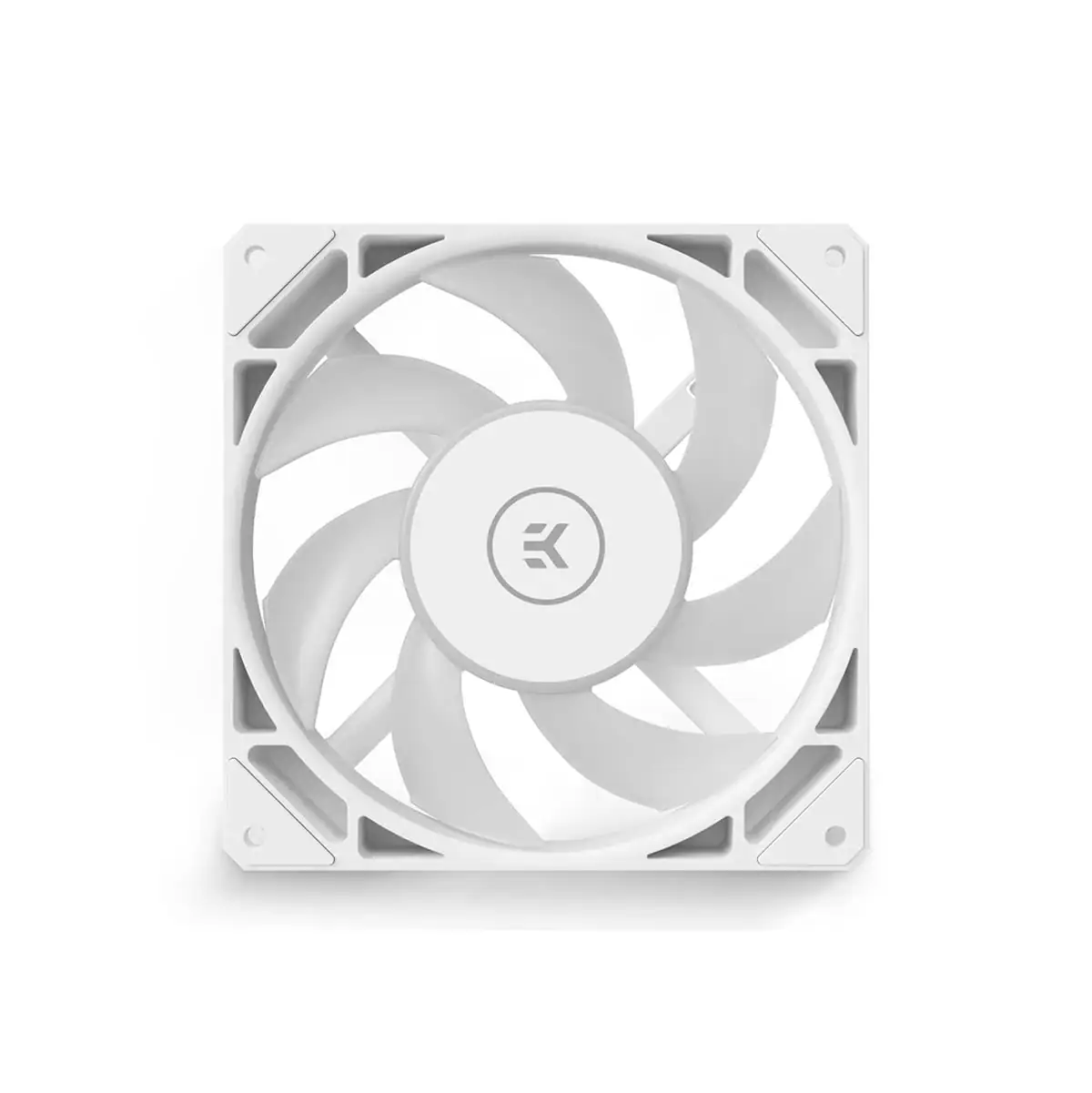

EKWB EK-Loop FPT 140mm Fan, 600-2200 RPM, Digital RGB, White,

Mechanical and electrical specifications:

– RPM range: 600 – 2200 RPM
– Rated voltage: 12V
– Power draw: 5,5W
– LED power draw: 3W (0,6A)
– PWM duty cycle: 20-100%
– Shaft bearing: FDB (Fluid Dynamic Bearing)
– Bearing durability: 60000 hrs@ 25℃
– Dimensions: 140mm x 140mm x 27mm
– Fan cable length: 120mm
– Fan connector: Micro-fit 8-pin connector
– Extender cable length: 500mm
– Extender connector: 4-Pin PWM Header and 3-Pin Addressable 5V D-RGB header

Performance characteristics:

– Max Air Flow: 118,01 CFM = 200,5 m³/h
– Static Pressure: 3,57 mm H20 = 35 Pa
– Noise Level: 44,56dBA (max. RPM)

Enclosed:
– 1x EK-Loop Fan FPT 140
– 1x Cable extender (PWM+RGB)
– 4x Self-tapping case screws
