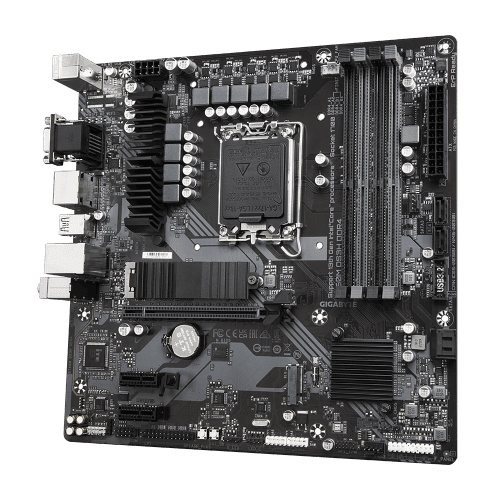

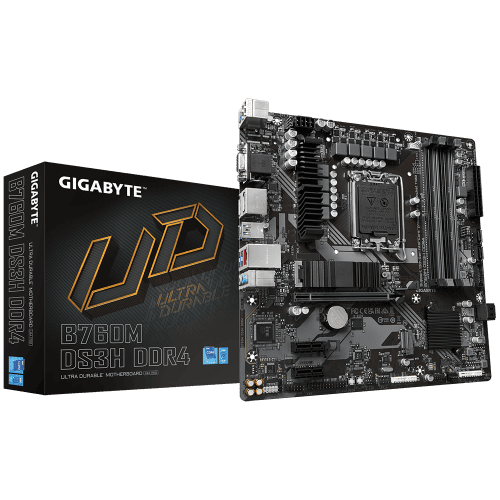

GIGABYTE B760M DS3H DDR4 Motherboard
GIGABYTE B760M DS3H DDR4 Motherboard - Image 2
GIGABYTE B760M DS3H DDR4 Motherboard - Image 3
GIGABYTE B760M DS3H DDR4 Motherboard - Image 4
GIGABYTE B760M DS3H DDR4 Motherboard - Image 5
GIGABYTE B760M DS3H DDR4 Motherboard - Image 6
GIGABYTE B760M DS3H DDR4 Motherboard - Image 7
, ,

GIGABYTE B760M DS3H DDR4 Motherboard

Gigabyte

102 JOD 105 JOD

GIGABYTE B760M DS3H DDR4 Motherboard

  • 6+2+1 Phases Hybrid Digital VRM Design
    • 6+2+1 Phases Low RDS(on) MOSFETs
    • Premium Choke and Capacitors to improve transient response and minimize oscillation
CPU
  • LGA1700 socket:  Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
  • L3 cache varies with CPU
Chipset

Intel® B760 Express Chipset
Memory Dual Channel Memory Architecture
Memory Bus Speed
  • Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
Maximum Memory
128GB
LAN
    1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Back Panel Ports
  • 2 x USB 2.0/1.1 ports
  • 1 x PS/2 keyboard/mouse port
  •  D-Sub port
  • 1 x HDMI port
  • 2 x DisplayPorts
  • 3 x USB 3.2 Gen 1 ports
  • 1 x USB Type-C® port, with USB 3.2 Gen 2 support
  • 1 x RJ-45 port
  • 3 x audio jacks



GIGABYTE B760M DS3H DDR4 MOTHERBOARD

GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

GIGABYTE B760M DS3H DDR4 Motherboard

  • Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors
  • Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution
  • Dual Channel DDR4：4*DIMMs XMP Memory Module Support
  • Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
  • M.2 Thermal Guard：To Ensure M.2 SSD Performance
  • EZ-Latch：PCIe 4.0×16 Slot with Quick Release Design
  • Fast Networks：2.5GbE LAN
  • Extended Connectivity：Rear USB-C® 10Gb/s, DP, HDMI
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Categories: , , Tags: , , , , , , , , ,
Motherboard Form Factor

Micro ATX
Motherboard Manufacturer

Intel
Motherboard Socket - intel

LGA 1700
Brands

CPU Socket

Intel Socket
Intel Socket

LGA 1700
RAM Generation

DDR4
