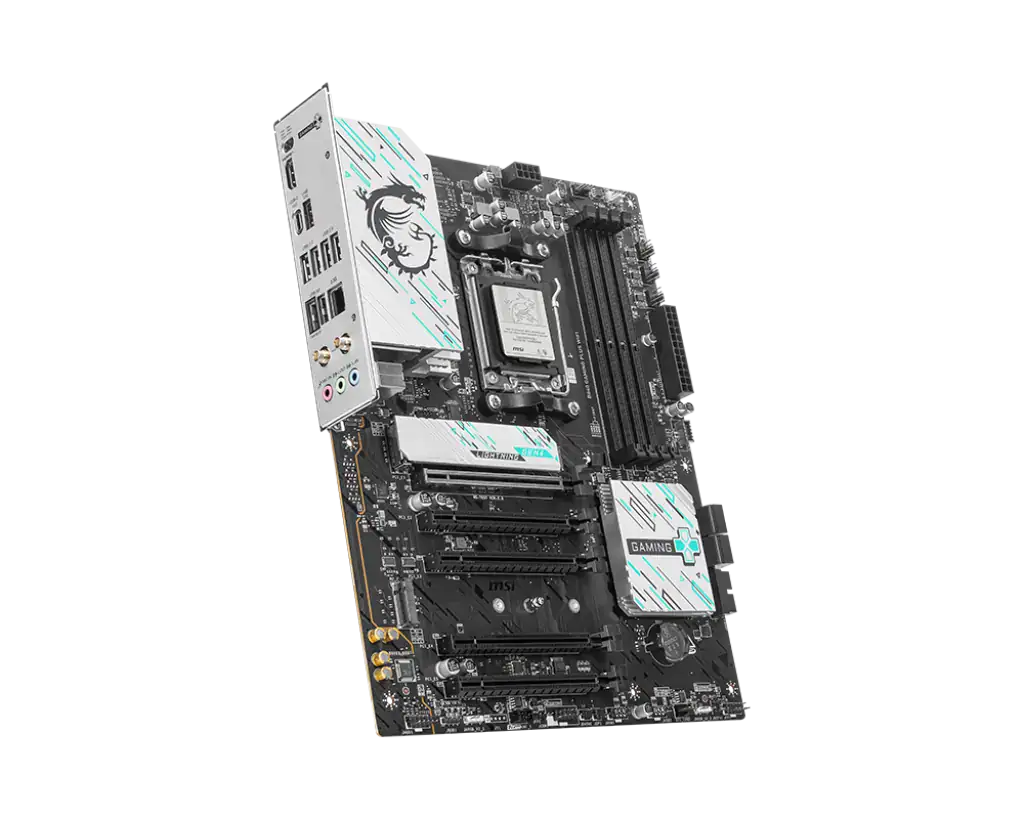

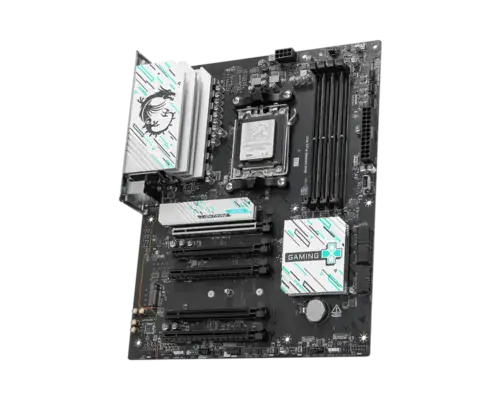

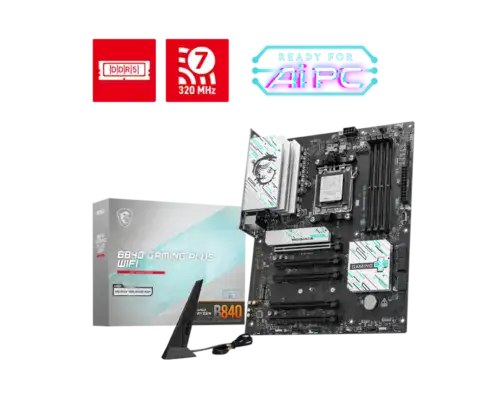

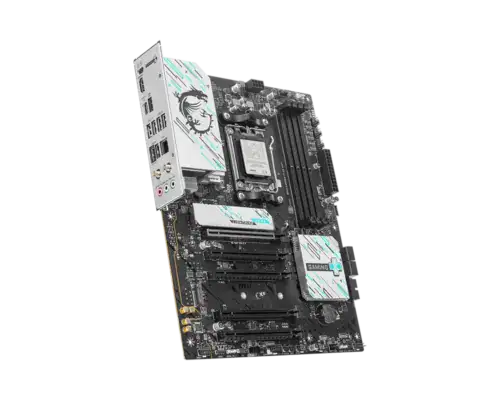

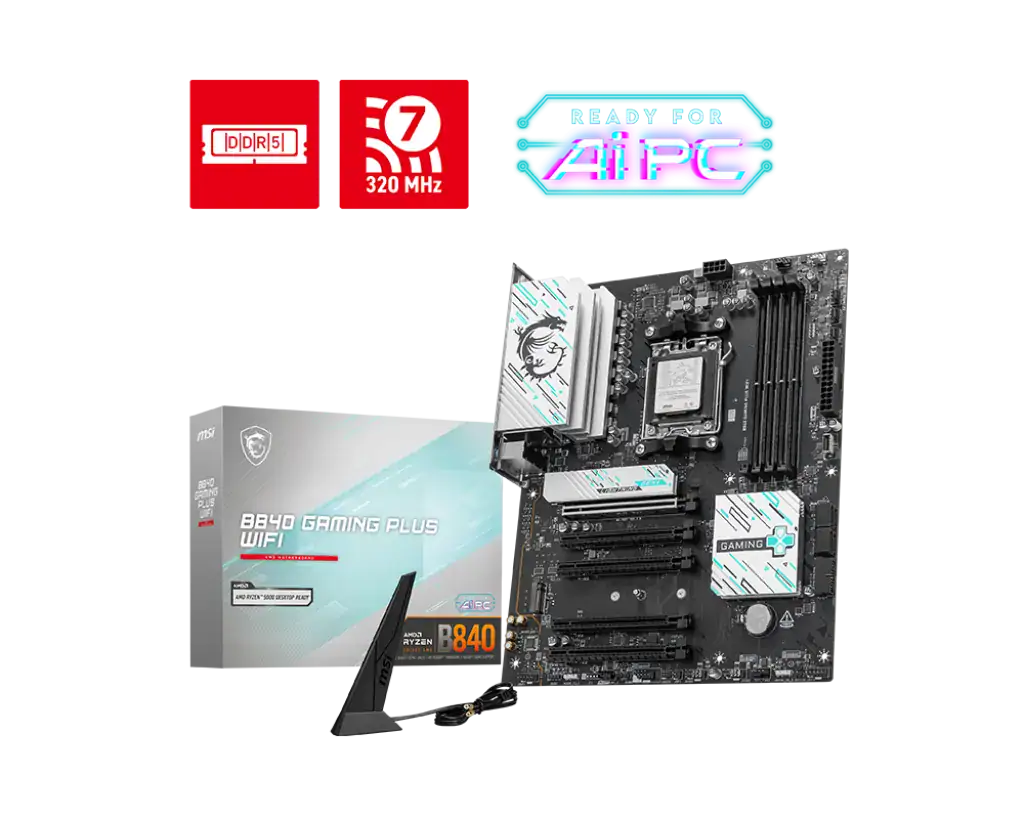

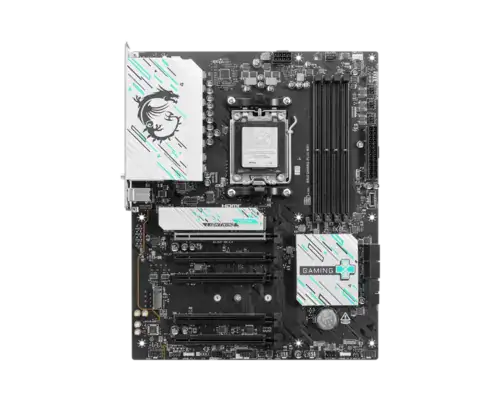

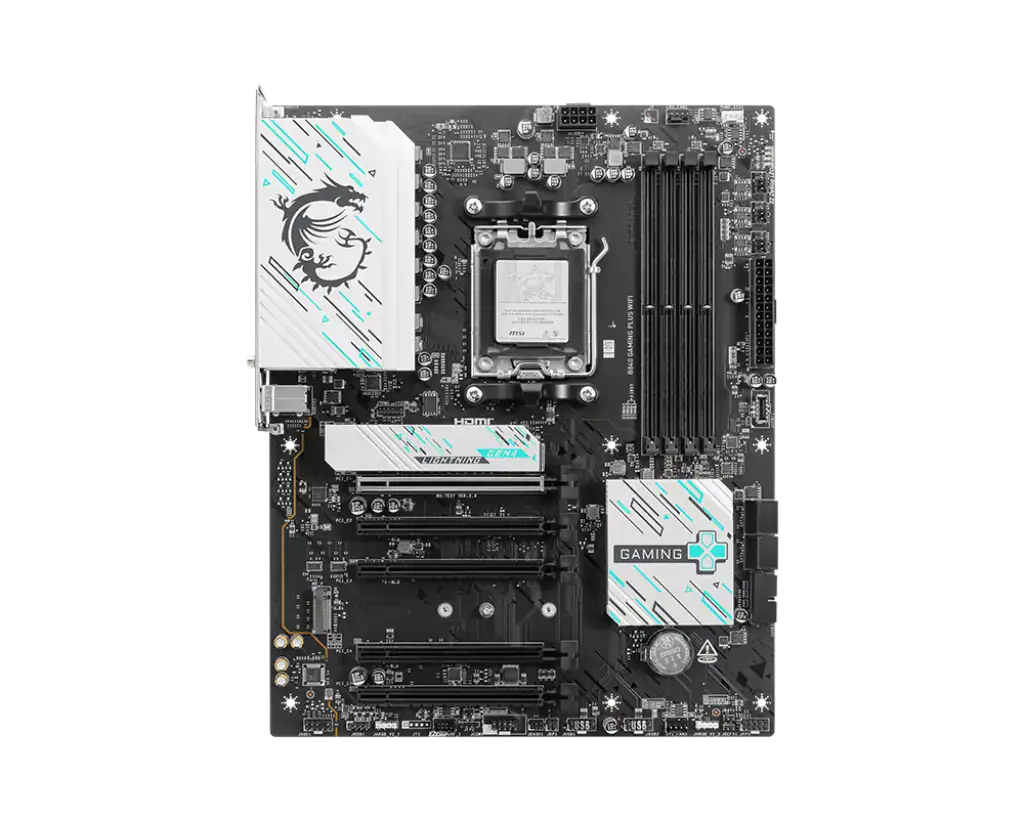

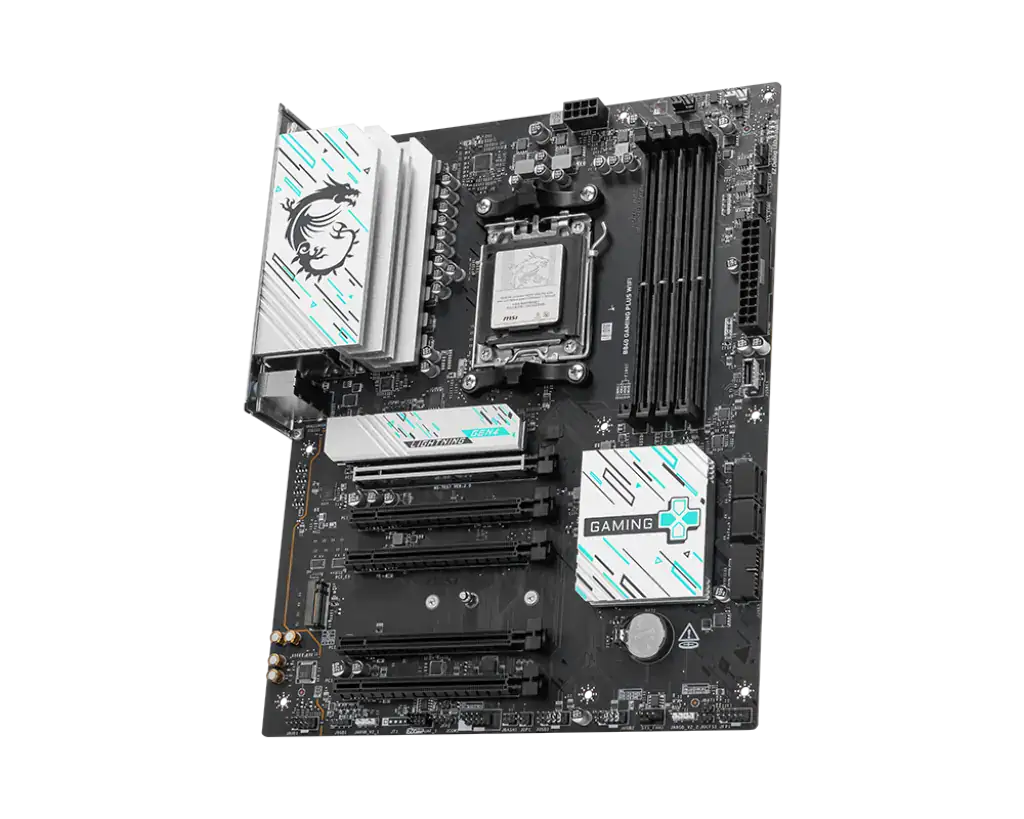

MSI B840 GAMING PLUS WIFI DDR5

159 JOD

Supported Processors	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Chipset	AMD B840
Socket	AMD AM5
Memory Type	DDR5
Memory Slots	4
Maximum Memory	256GB
Memory Bus Speed	4x DDR5 UDIMM Maximum Memory Capacity 256GB Memory Support DDR5 8000 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8000+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s

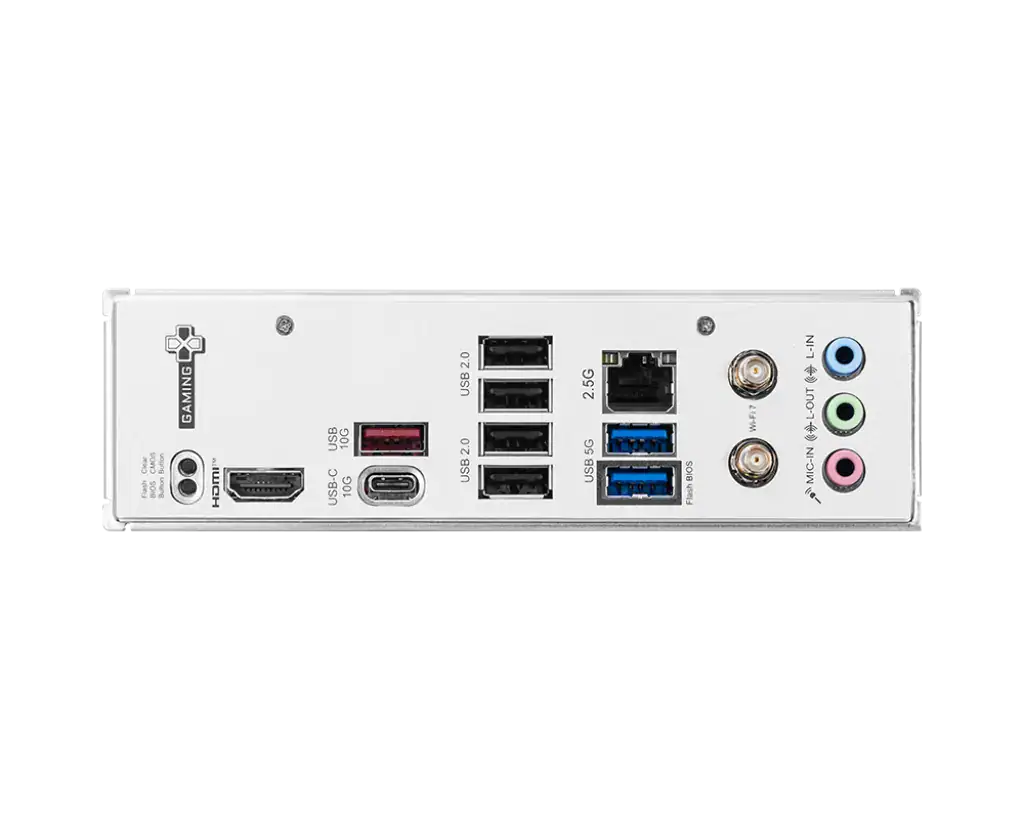

Ports	Clear CMOS Button USB 10Gbps (Type-A) USB 2.0 2.5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI™ 2.1 Port USB 10Gbps (Type-C) USB 5Gbps (Type-A)
Form Factor	ATX
M.2 Slots	Yes
Expansion Slots	5x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x4 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
