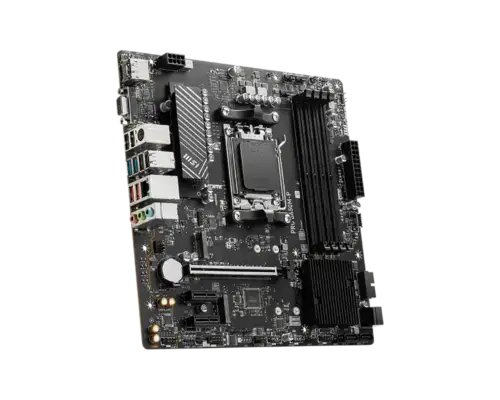

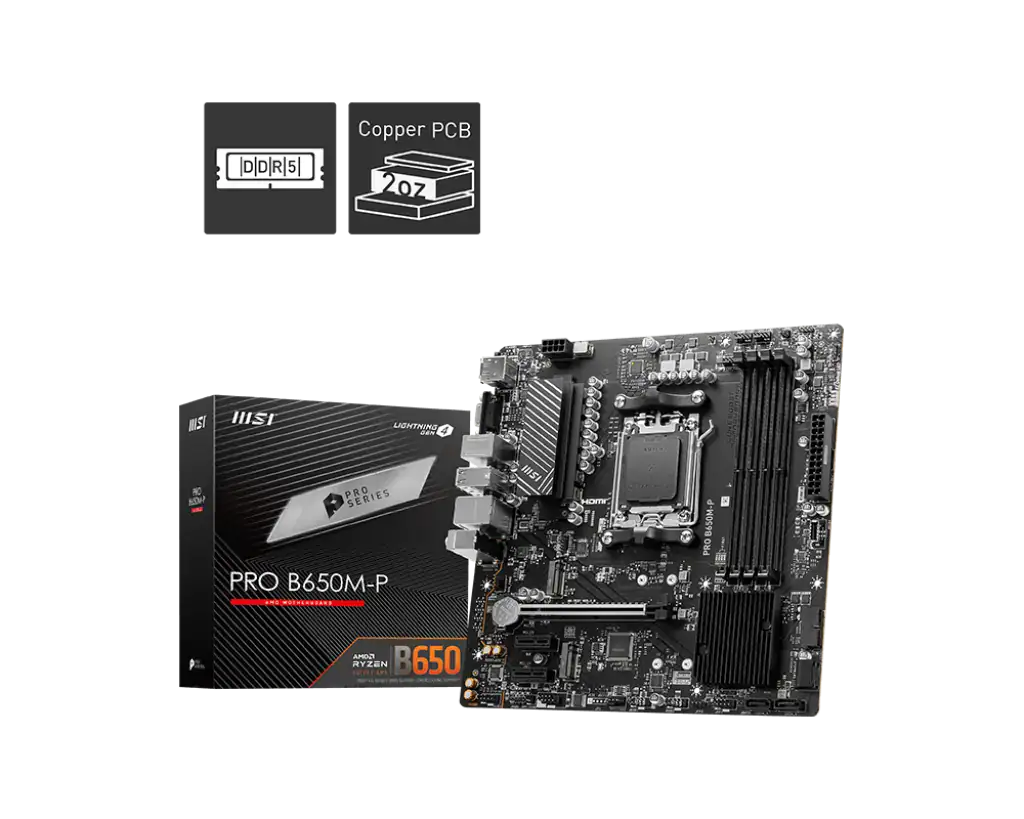

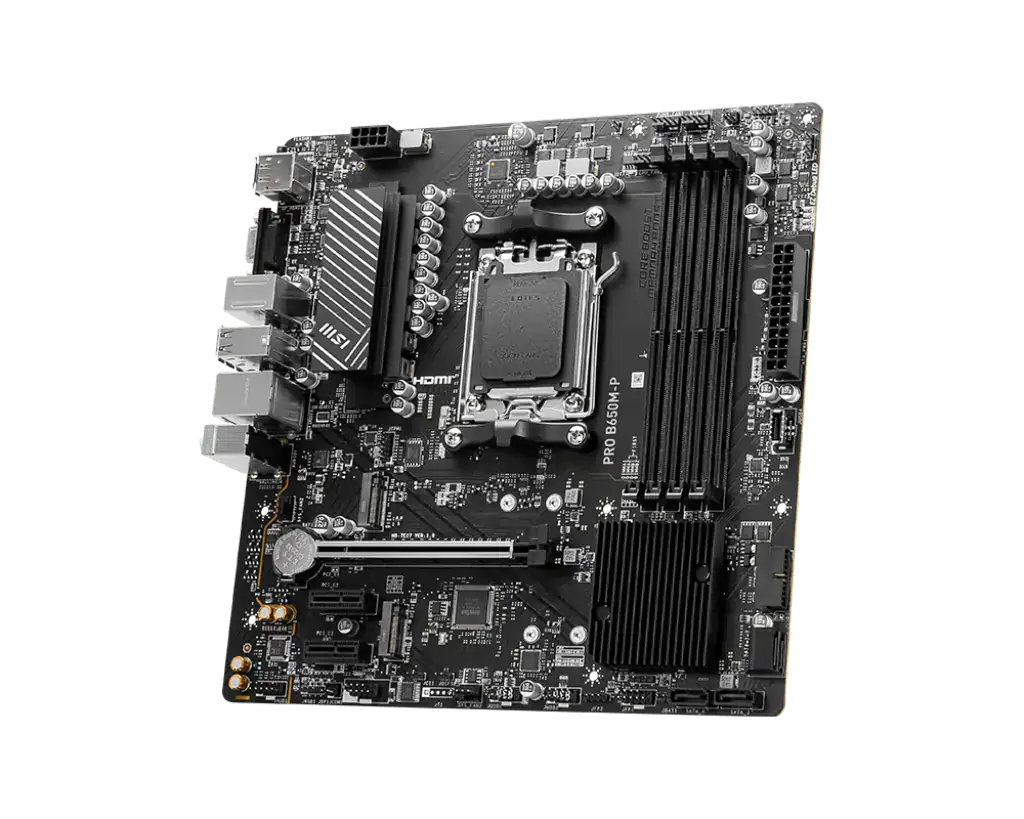

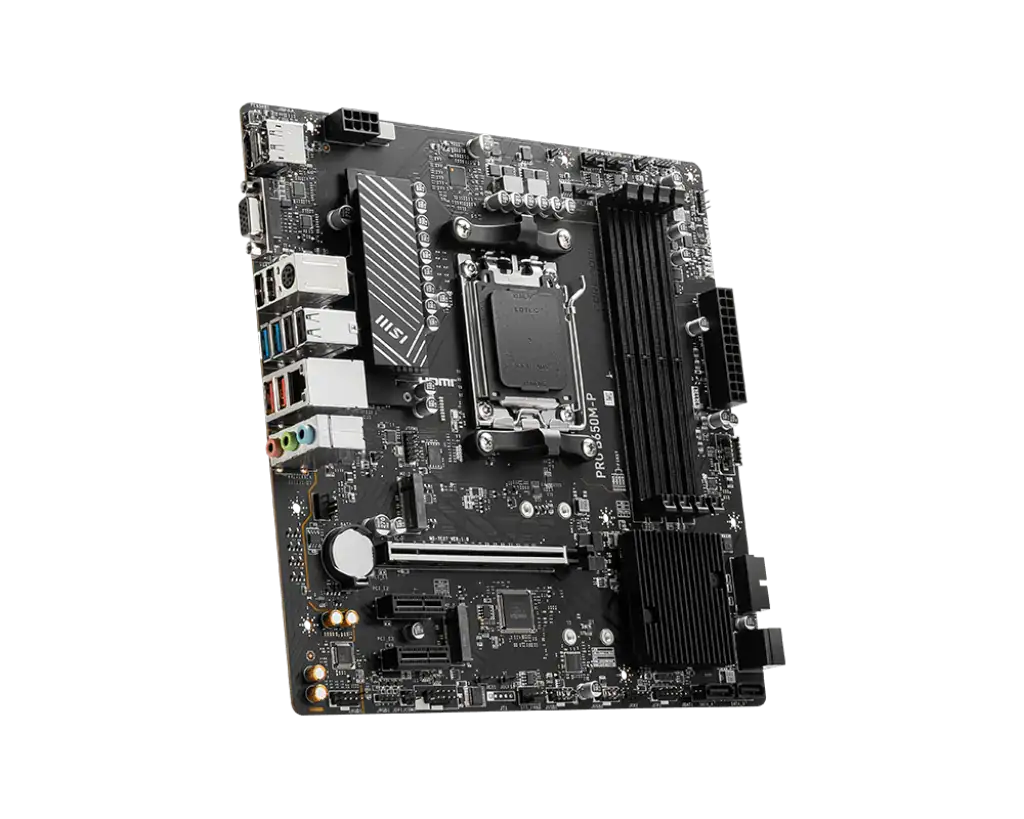

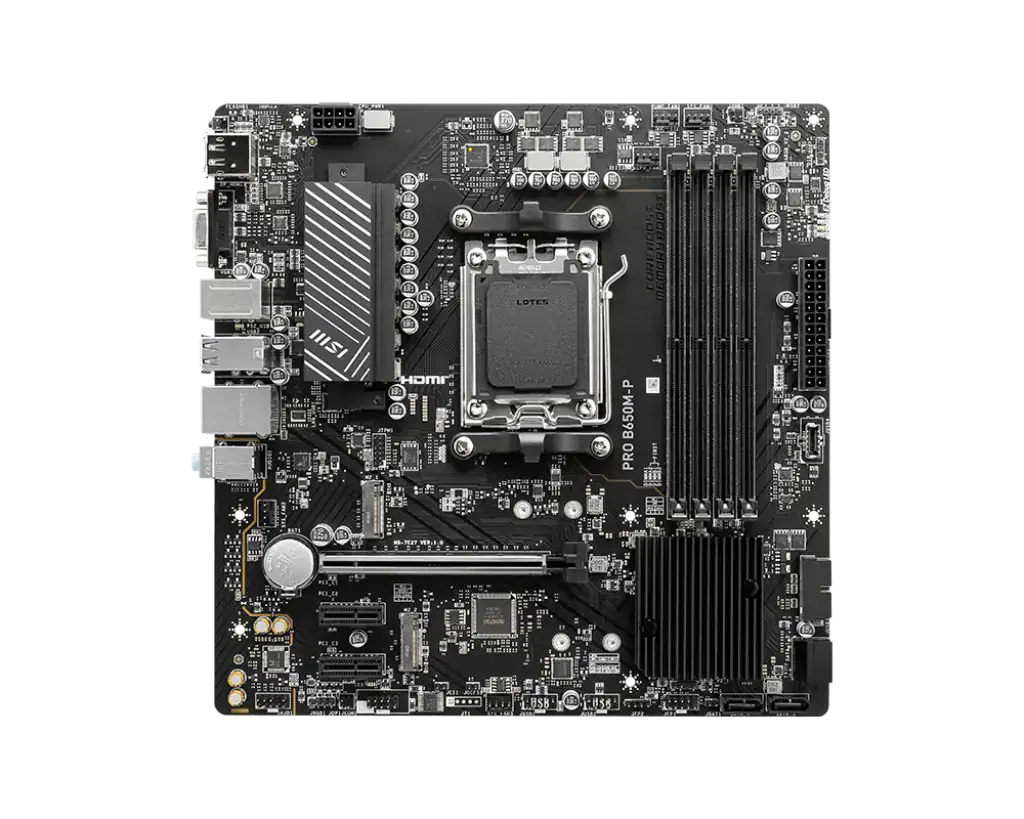

MSI PRO B650M-P DDR5

129 JOD

Supported Processors	Supports AMD Ryzen™ 7000 Series Desktop ProcessorsSocket AM5
Chipset	AMD B650
Socket	AMD AM5
Memory Type	DDR5
Memory Slots	4
Maximum Memory	192GB
Memory Bus Speed	4x DDR5 Maximum Memory Capacity 192GBMemory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 6000+ MHz• 1DPC 2R Max speed up to 6000+ MHz• 2DPC 1R Max speed up to 6000+ MHz• 2DPC 2R Max speed up to 5400+ MHz

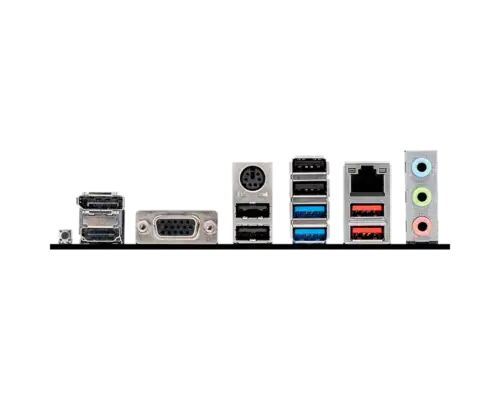

Ports	DisplayPortVGAKeyboard / MouseUSB 2.02.5G LANAudio connectorsFlash BIOS ButtonHDMI™USB 2.0USB 3.2 Gen 1 5Gbps (Type-A)USB 3.2 Gen 2 10Gbps (Type-A)
Form Factor	mATX
M.2 Slots	Yes
Expansion Slots	1x PCI-E x16 slot2x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
