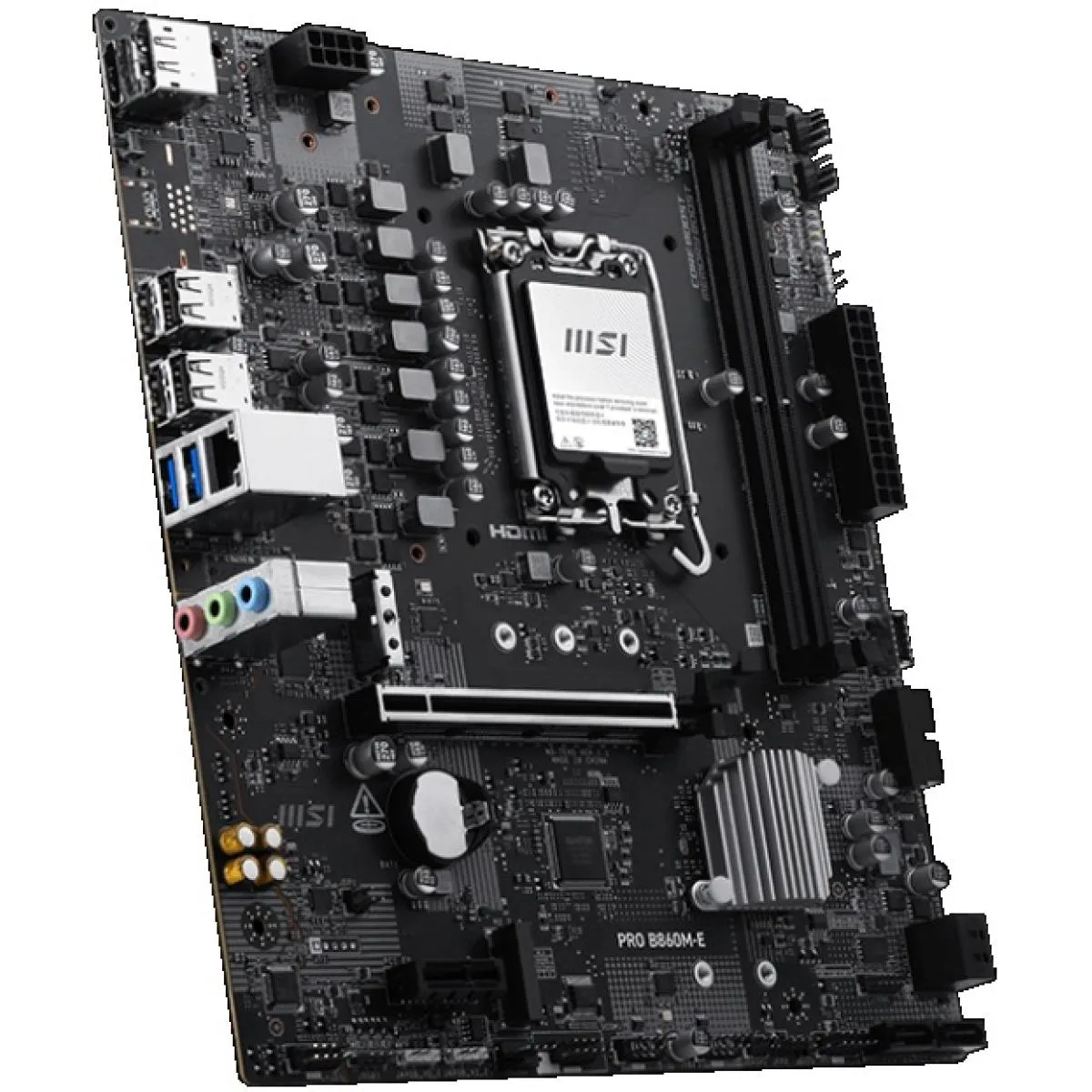

MSI PRO B860M-E, Intel Core Ultra (Series 2), LGA 1851/DDR5/PCIe 5.0/2xM.2 - mATX Gaming MotherBoard

Components, Intel, Intel-DDR5, MotherBoard

MSI PRO B860M-E, Intel Core Ultra (Series 2), LGA 1851/DDR5/PCIe 5.0/2xM.2 – mATX Gaming MotherBoard

99 JOD

Description
Specification

Motherboard Specifications
Supported Processors	Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
Chipset	INTEL B860
Socket	LGA1851
Memory Type	DDR5
Memory Slots	2
Maximum Memory	128GB
Memory Bus Speed	2x DDR5 UDIMM Maximum Memory Capacity 128GB Memory Support DDR5 9066 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9066+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC Un-buffered memory Supports CUDIMM
Ports	DisplayPort Clear CMOS Button USB 2.0 5G LAN Audio Connectors HDMI™ USB 5Gbps Type-A
Form Factor	mATX
M.2 Slots	Yes
Expansion Slots	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
