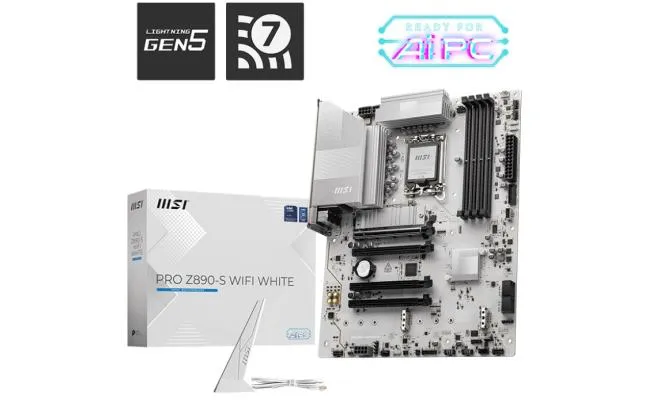

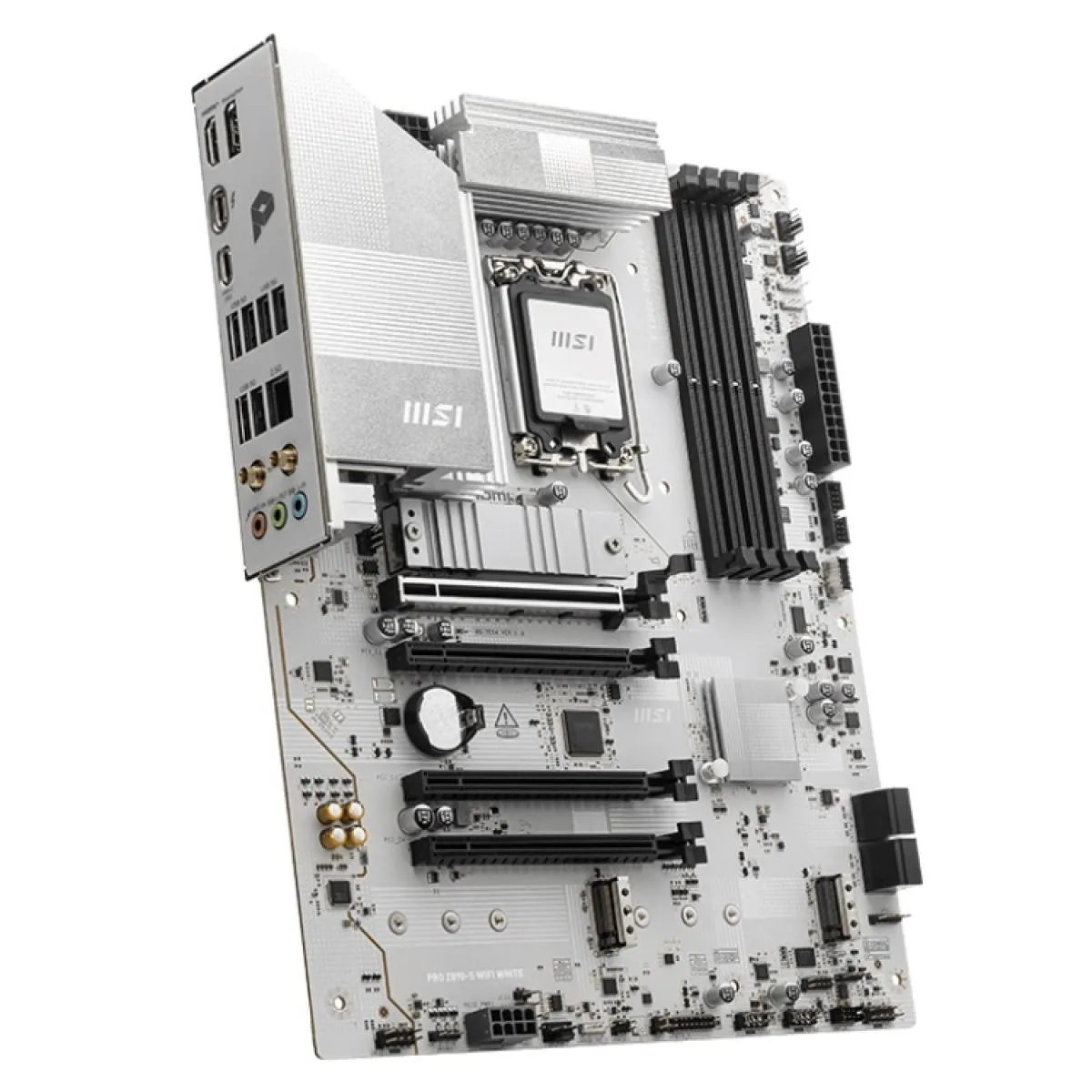

MSI PRO Z890-S WIFI WHITE (Wi-Fi 7), Intel Core Ultra (Series 2), LGA 1851/DDR5/PCIe 5.0/3xM.2 - ATX Gaming MotherBoard

Components, Intel, Intel-DDR5, MotherBoard

MSI PRO Z890-S WIFI WHITE (Wi-Fi 7), Intel Core Ultra (Series 2), LGA 1851/DDR5/PCIe 5.0/3xM.2 – ATX Gaming MotherBoard

229 JOD

Description
Specification

Motherboard Specifications
Supported Processors	LGA1851 socket: Support for Intel® Core™ Ultra Processors
Chipset	Intel® Z890 Express Chipset
Socket	LGA1851
Memory Type	DDR5
Memory Slots	4
Maximum Memory	256GB
Memory Bus Speed	4x DDR5 UDIMM Maximum Memory Capacity 256GB Memory Support 8600 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8600+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s
Ports	DisplayPort USB 5Gbps Type-A 2.5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ Thunderbolt™ 4 40Gbps (Type-C) USB 20Gbps Type-C USB 5Gbps Type-A
Form Factor	ATX
M.2 Slots	Yes
Expansion Slots	4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)
