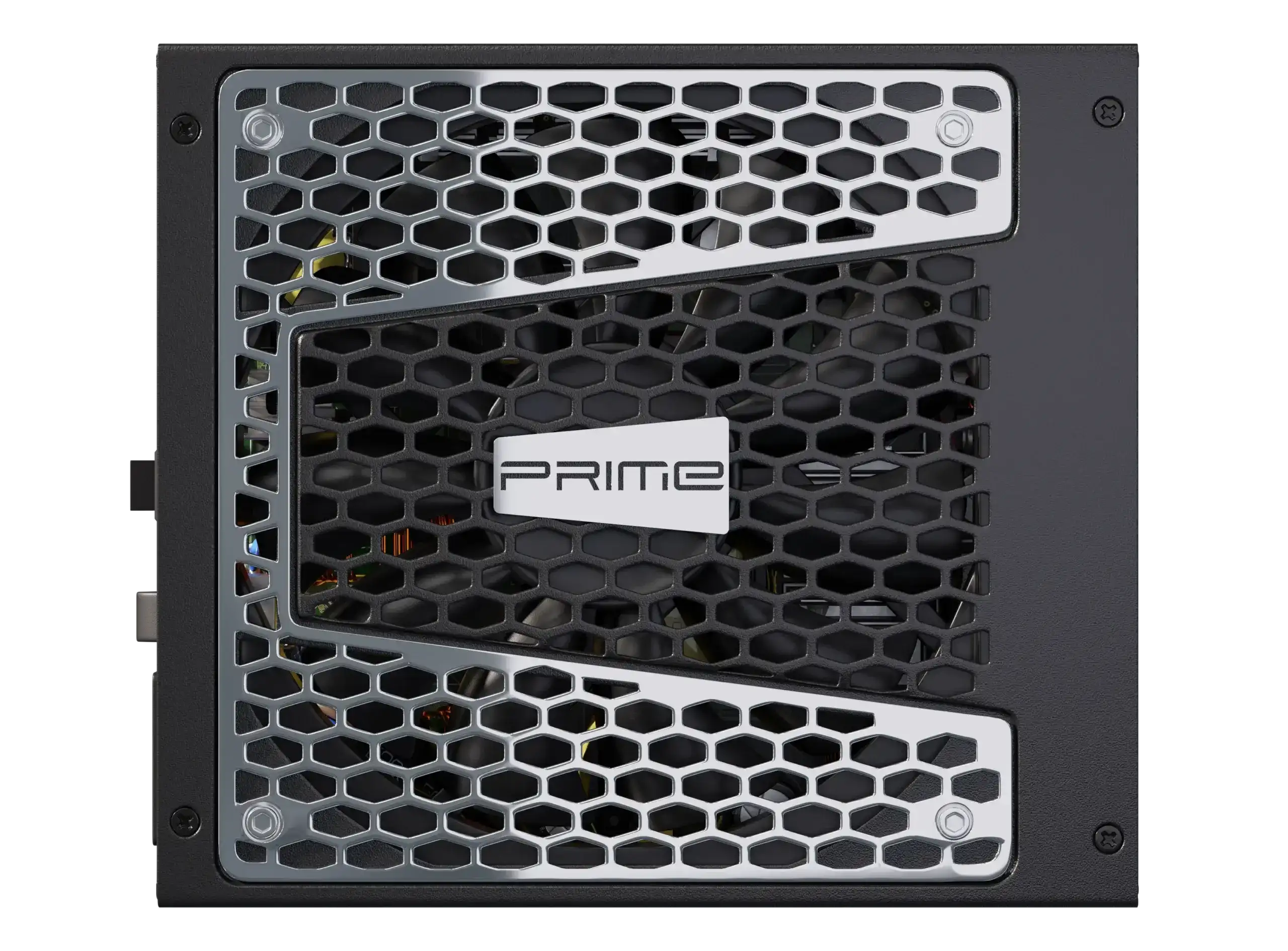

SEASONIC PRIME GX 1000 W
SEASONIC PRIME GX 1000 W - Image 2
SEASONIC PRIME GX 1000 W - Image 3
SEASONIC PRIME GX 1000 W - Image 4
SEASONIC PRIME GX 1000 W - Image 5
SEASONIC PRIME GX 1000 W - Image 6
SEASONIC PRIME GX 1000 W - Image 7
SEASONIC PRIME GX 1000 W - Image 8
SEASONIC PRIME GX 1000 W - Image 9
SEASONIC PRIME GX 1000 W - Image 10

SEASONIC PRIME GX 1000 W

194 JOD



Technical Specifications
80PLUS® Gold
Cybenetics Efficiency Level TBA
Cybenetics Noise Level TBA
Form Factor ATX/EPS
Dimensions 170 × 150 × 86 mm
Fan Information Fan Size 135 mm
Fan Control Premium Hybrid Fan Control
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 °C, 15 % – 65 % RH
Cable Information Modularity Fully Modular
Cable type Black Flat Cables
Electrical Features Operating Temperature 0 – 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly)
MTBF @ 25 °C, excl. fan 100,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty 12 Years
Power Output
AC Input 100 V – 240 V
13 – 6.5 A
50 Hz – 60 Hz
DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power 25 A 25 A 83 A 0.3 A 3 A
125 W 996 W 3.6 W 15 W
Total continuous power 1000 W
