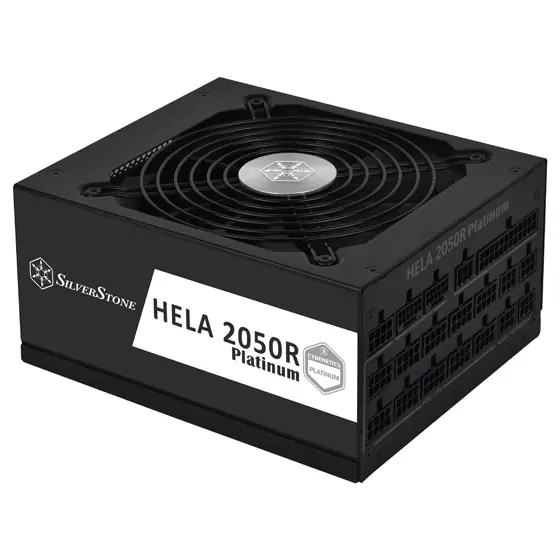

SilverStone HELA 2050R Platinum Fully Modular Power Supply, 2050W Power, Cybenetics Platinum Certified, Active PFC, All Japanese Electrolytic Capacitors, Black | SST-HA2050R-PM

AI Machines, Components, Power Supplies

SilverStone HELA 2050R Platinum Fully Modular Power Supply, 2050W Power, Cybenetics Platinum Certified, Active PFC, All Japanese Electrolytic Capacitors, Black | SST-HA2050R-PM

440 JOD

Description
Specification

Product No.	SST-HA2050R-PM
Model (safety certification)	SST-AX2050MCPT-C
Color	Black (lead-free paint)
Max. DC Output	2050W
Power density	882W/L
Load Range
Output	+3.3V
Max. (Amps)	25A
Min. (Amps)	0A
Range (%)	±3%
Line Reg. (%)	±1%
Ripple (mVp-p)	30mV
Combined +3.3V & +5V	120W
Combined +12V	2040W
Input Voltage	2050W: 200~240 Vrms, 1650W: 103~264 Vrms, 1350W: 90~264 Vrms
Input Frequency Range	47Hz ~ 63Hz
PFC	Active PFC (PF > 0.95 at full load)
Efficiency	89% ~ 91% overall efficiency
MTBF	100,000 hours
Operating temperature	0°C ~ 50°C
Protection	Over Current Protection, Over Power Protection, Over Voltage Protection, Short Circuit Protection, Over Temperature Protection

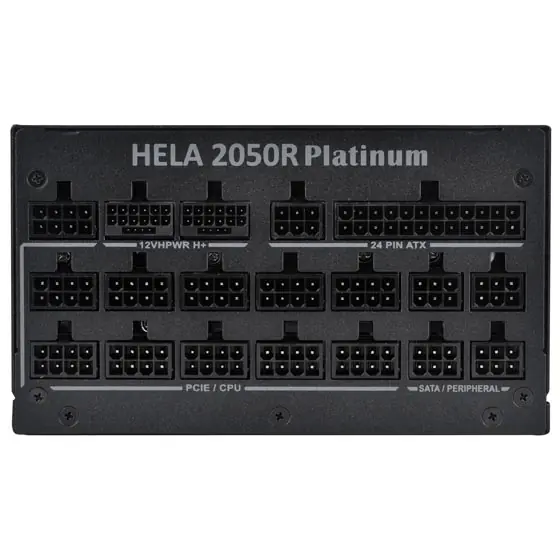

Connectors	1 x 24 / 20-Pin motherboard connector, 2 x 8 / 4-Pin EPS / ATX 12V connector, 14 x 8 / 6-Pin PCIe connectors, 3 x 12+4-Pin 12VHPWR connector, 12 x SATA connector, 3 x 4-Pin Peripheral connector, 1 x 4-Pin Floppy adapter connector
Cooling System	135mm dual-ball bearing fan
Noise Level	0 dBA minimum
Certification	Cybenetics Platinum
Form factor	ATX (PS2)
Dimension	150mm (W) x 86mm (H) x 180mm (D), 5.91″ (W) x 3.39″ (H) x 7.09″ (D)
Weight	4.34 kg
